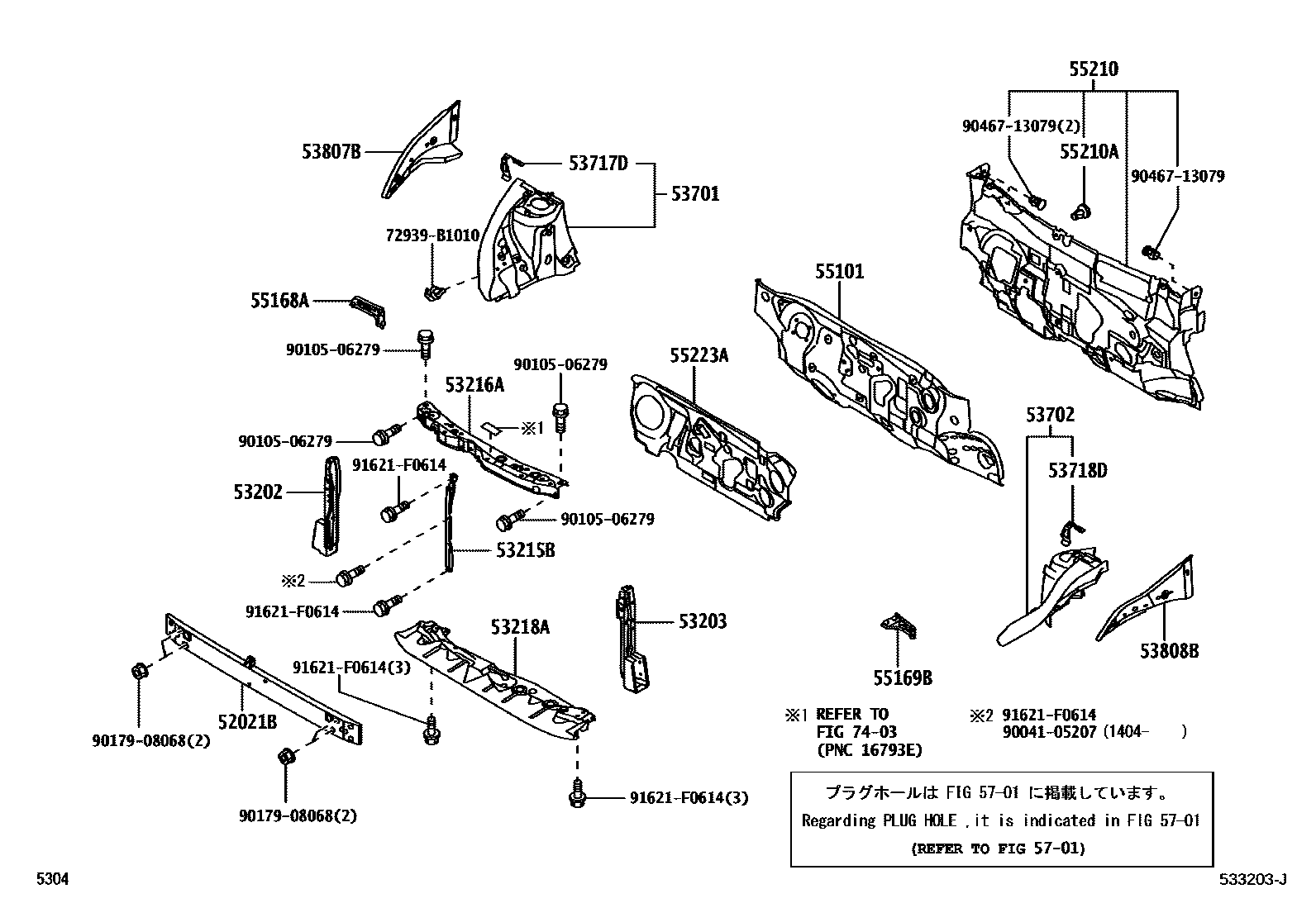

Toyota PASSO — FRONT FENDER APRON & DASH PANEL

52021BREINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-B1060iKGC3#,NGC30..HANA201002-201206

main52021-B1070iKGC3#,NGC30..G,X201002-201206

main52021-B1090iKGC3#,NGC30201404-201604

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-B1070iKGC3#,NGC30201002-201206

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-B1070iKGC3#,NGC30201002-201206

53215BSUPPORT, HOOD LOCK

main53215-B1010iKGC3#,NGC30201404-201604

53216ASUPPORT, RADIATOR, UPPER

main53216-B1090iKGC3#,NGC30201002-201206

53218ASUPPORT, RADIATOR, LOWER

main53028-B1040iKGC3#,NGC30201002-201206

main53028-B1060iKGC3#,NGC30201308-201404

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-B1050iKGC3#,NGC30201002-201206

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-B1050iKGC3#,NGC30201002-201206

53717DGUSSET, FENDER APRON, RH

main53717-B1040iKGC3#,NGC30201206-201404

53718DGUSSET, FENDER APRON, LH

main53718-B1040iKGC3#,NGC30201002-201206

53807BREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53803-B1020iKGC3#,NGC30201002-201206

53808BREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53804-B1020iKGC3#,NGC30201002-201206

55101PANEL SUB-ASSY, DASH

main55101-B1080iKGC3#,NGC30201002-201206

main55101-B1081iKGC3#,NGC30201206-201404

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-B1050iKGC3#,NGC30201002-201206

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-B1050iKGC3#,NGC30201002-201206

55210INSULATOR ASSY, DASH PANEL

main55210-B1080iKGC3#,NGC30201002-201206

main55210-B1100iKGC3#,NGC30201404

55210ACLIP

main90467-11122×5iKGC3#,NGC30201002-201206

55223AINSULATOR, DASH PANEL, OUTER

main55223-B1050iKGC3#,NGC30201002-201206

5701

7403

72939B1010HOOK, SEAT TURN LOCK, RH

main72939-B1010

9004105207

main90041-05207

9010506279

main90105-06279

9017908068

main90179-08068

9046713079

main90467-13079

91621F0614

main91621-F0614

26 parts on this diagram · 1 diagram in section
