Toyota PASSO — FRONT DOOR WINDOW REGULATOR & HINGE

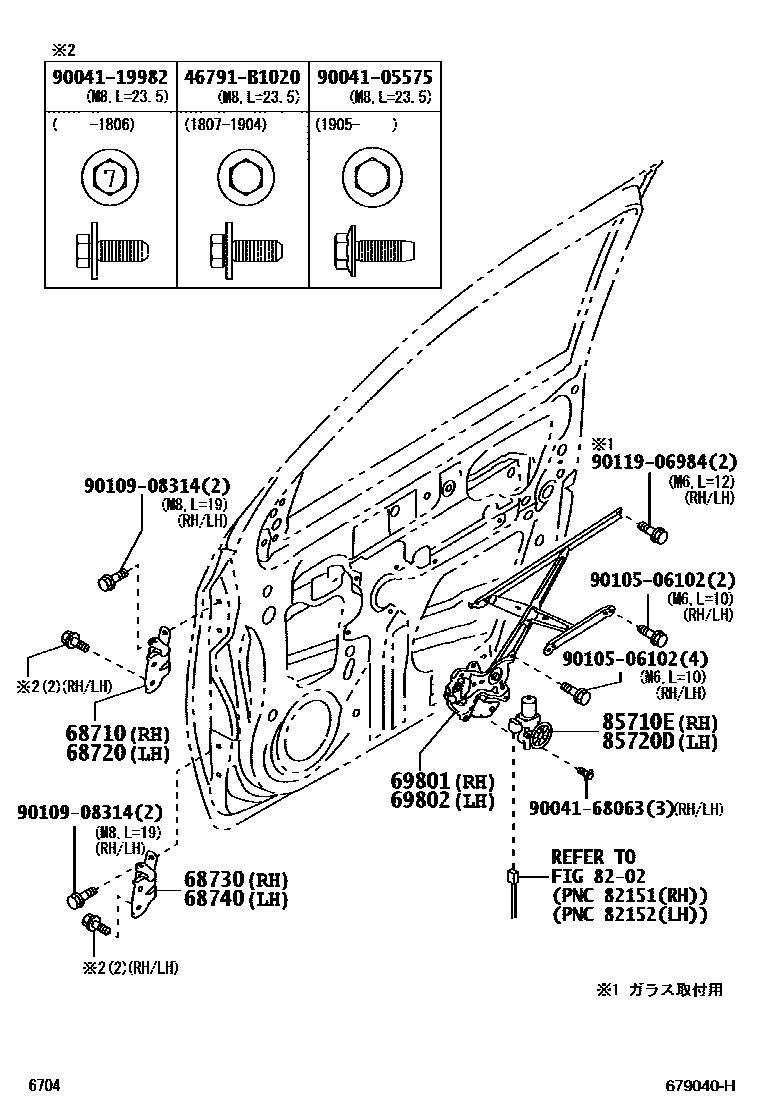

Parts diagram

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68740-97201i201604-202309

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-97203i201604-202309

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-97203i201604-202309

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-97201i201604-202309

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-B1040i202104-202309

main69801-B2200i201604-201806

main69801-B2250i201807-202103

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-B1030i202104-202309

main69802-B2190i201604-201806

main69802-B2250i201807-202103

8202WIRING & CLAMP

→ Go to FIG 82-02

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-B5020i201604-202309

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-B2110i201604-202309

46791B1020BOLT, EXHAUST VALVE COVER

main46791-B1020

9004105575

main90041-05575

9004119982

main90041-19982

9004168063

main90041-68063

9010506102

main90105-06102

9010908314

main90109-08314

9011906984

main90119-06984

16 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota PASSO

This section contains 16 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota PASSO. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH.
