Toyota PASSO — FRONT DOOR WINDOW REGULATOR & HINGE

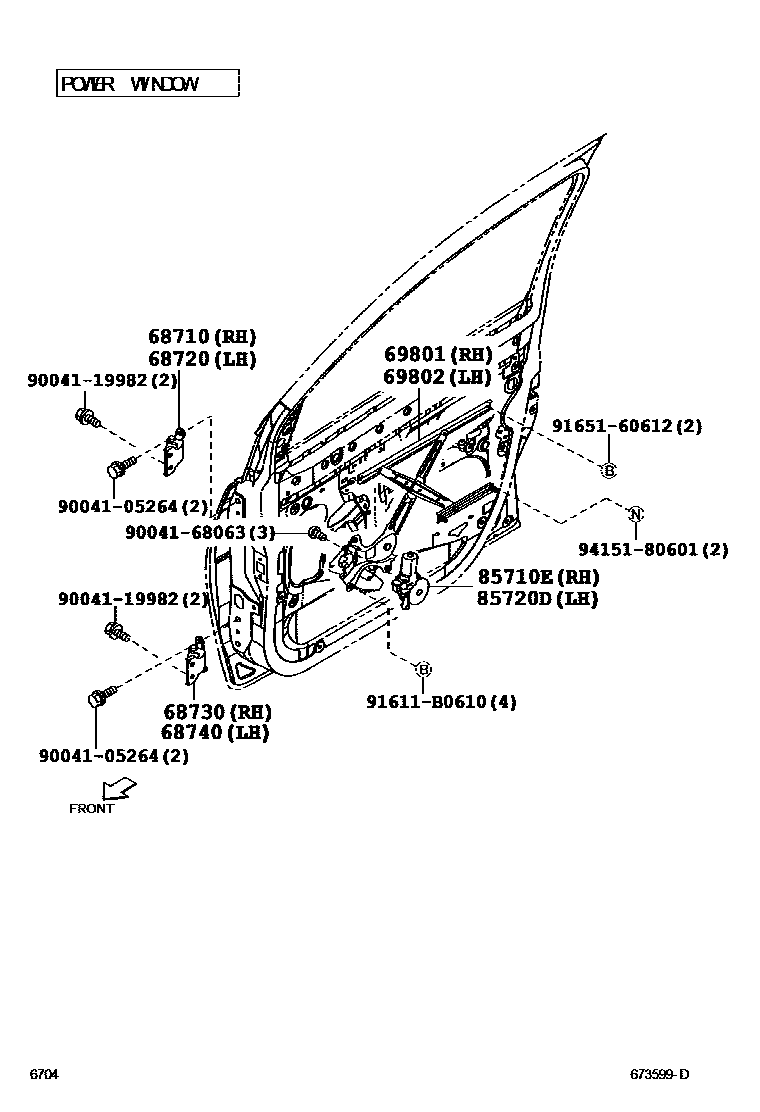

Parts diagram

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68770-97204i200405-200612

main68770-B1020i200905-201002

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68780-97204i200405-200612

main68780-B1020i200905-201002

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68780-97204i200405-200612

main68780-B1020i200905-201002

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68770-97204i200405-200612

main68770-B1020i200905-201002

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-B1010i200405-200612

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-B1010i200405-200612

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-B1010i200405-200612

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-B2020i200405-200612

9004105264

main90041-05264

9004119982

main90041-19982

9004168063

main90041-68063

91611B0610

main91611-B0610

9165160612

main91651-60612

9415180601

main94151-80601

14 parts on this diagram · 2 diagrams in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota PASSO

This section contains 16 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota PASSO. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH.
