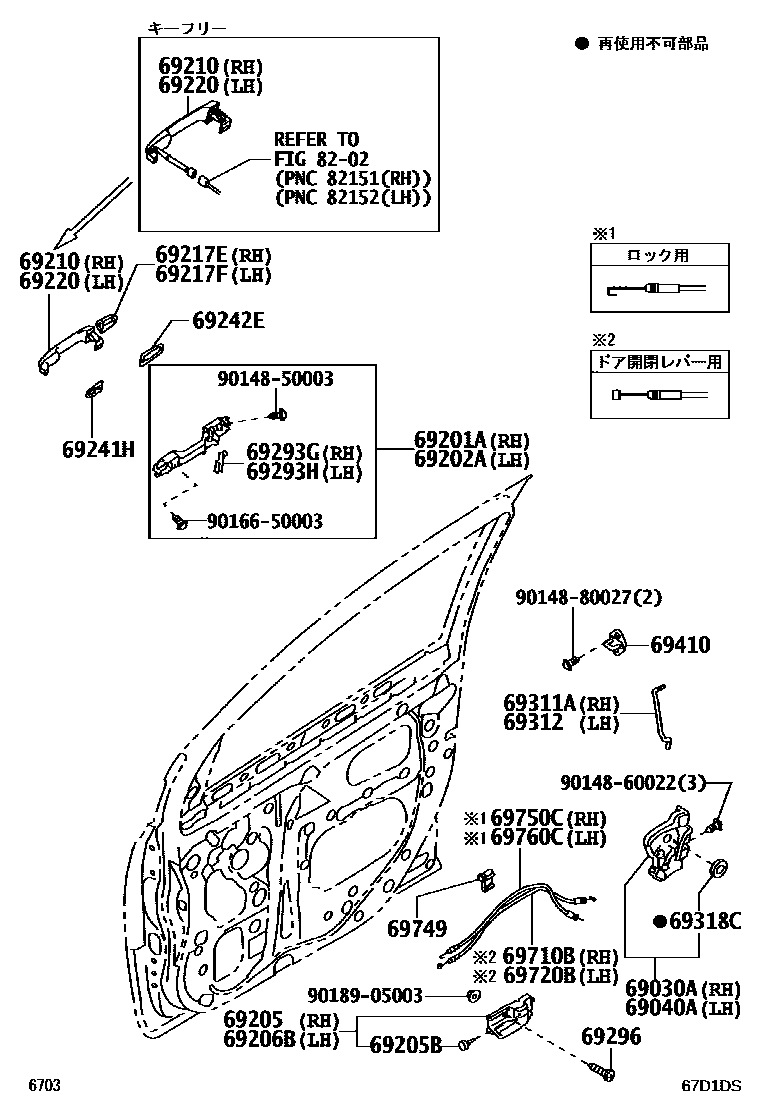

Toyota PASSO — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-B1030-A5supersedes 69211-B1010-A3iKGC3#..HANA; KGC3#..X; NGC30..G; NGC30..HANA201404-201604
main69210-B1030-K0supersedes 69211-B1010-K1iKGC3#..HANA; KGC3#..X; NGC30..G; NGC30..HANA201404-201604
LT.BLUE ME.OP.,B57
DK.RED.MC,R54
LT.ORANGE.M.M.,R62
BEIGE.ME.,T25
GRAYISH PURPLE ME.OP.,P12
RED,R40
SILVER ME.,S28
WHITE PEARL.MC.,W16
BLACK M.M.,X07
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
WHITE PEARL MC.CS,G50 ,P12 ,R40 ,R54 ,R65 ,S28 ,T25 ,W24 ,X07 ,X82 ,X88 ,X89; WHITE PEARL MC.CS,W24
LT.BLUE ME.OP.,B57
DK.RED.MC,R54
LT.ORANGE.M.M.,R62
PINK PEARL SE,R65 ,X82
BEIGE.ME.,T25
LT.GREEN.ME.,G50
OLIVE ME.SE,G52
LIGHT BLUE M.M.,B67
GRAYISH PURPLE ME.OP.,P12; GRAYISH PURPLE ME.OP.,P12 ,X89
RED,R40
SILVER ME.,S28
WHITE PEARL.MC.,W16
WHITE,W09
BLACK M.M.,X07
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
WHITE PEARL MC.CS,G50 ,P12 ,R40 ,R54 ,R65 ,S28 ,T25 ,W24 ,X07 ,X82 ,X88 ,X89; WHITE PEARL MC.CS,W24
LT.BLUE ME.OP.,B57
DK.RED.MC,R54
LT.ORANGE.M.M.,R62
PINK PEARL SE,R65 ,X82
BEIGE.ME.,T25
LT.GREEN.ME.,G50
OLIVE ME.SE,G52
LIGHT BLUE M.M.,B67
GRAYISH PURPLE ME.OP.,P12
RED,R40
SILVER ME.,S28
WHITE PEARL.MC.,W16
WHITE,W09
BLACK M.M.,X07
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-B1030-A5supersedes 69211-B1010-A3iKGC3#..HANA; KGC3#..X; NGC30..G; NGC30..HANA201404-201604
main69210-B1030-K0supersedes 69211-B1010-K1iKGC3#..HANA; KGC3#..X; NGC30..G; NGC30..HANA201404-201604
LT.BLUE ME.OP.,B57
DK.RED.MC,R54
LT.ORANGE.M.M.,R62
BEIGE.ME.,T25
GRAYISH PURPLE ME.OP.,P12
RED,R40
SILVER ME.,S28
WHITE PEARL.MC.,W16
BLACK M.M.,X07
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8202WIRING & CLAMP
9014850003
main90148-50003
9014860022
main90148-60022
9014880027
main90148-80027
9016650003
main90166-50003
9018905003
main90189-05003
31 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota PASSO
This section contains 31 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota PASSO. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
