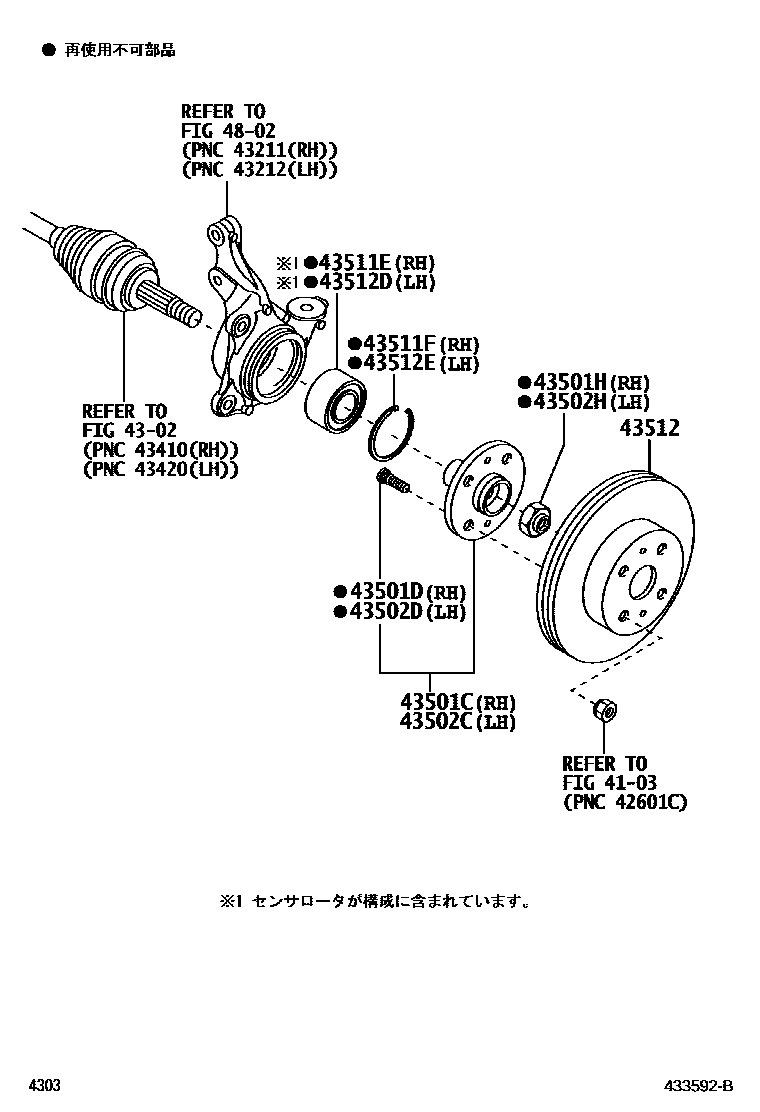

Toyota PASSO — FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-B5020i201002-201206

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056×4i201002-201206

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90041-79274i201002-201206

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-B5020i201002-201206

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056×4i201002-201206

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90041-79274i201002-201206

43511EBEARING (FOR FRONT AXLE HUB RH)

main43560-B1010i201002-201206

main43560-B1011i201404-201604

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21111i201206-201404

43512DISC, FRONT

main43512-B1040×2i201002-201206

main43512-B1080×2i201206-201404

43512DBEARING (FOR FRONT AXLE HUB LH)

main43560-B1010i201002-201206

main43560-B1011i201206-201404

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21111i201002-201206

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

14 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota PASSO

This section contains 14 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota PASSO. Key components include: DISC WHEEL & WHEEL CAP, FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH).
