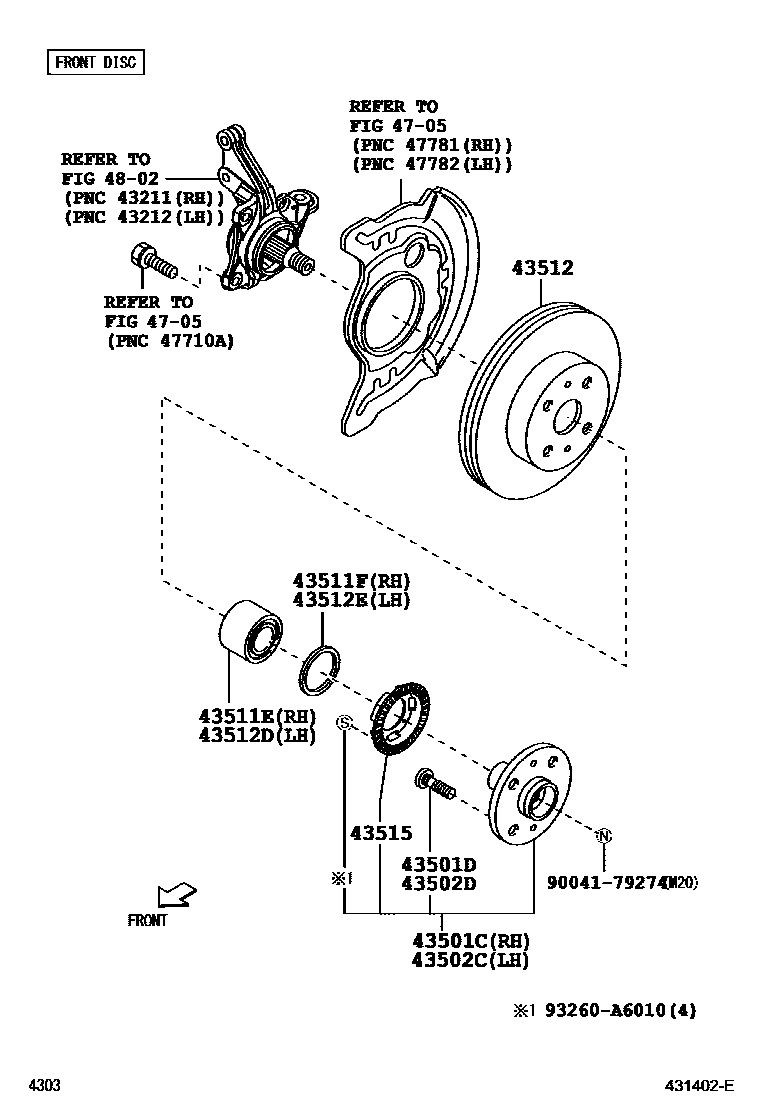

Toyota PASSO — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-97202i200612-200707

main43502-B2010i200708-201002

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056×4i200405-200612

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-97202i200612-200707

main43502-B2010i200708-201002

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056×4i200405-200612

43511EBEARING (FOR FRONT AXLE HUB RH)

main90043-63253i200405-200612

main90043-63361i200707-201002

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21163i200405-200612

43512DISC, FRONT

main43512-B1040×2i200612-201002

main43512-B1050×2supersedes 43512-B1040i200412-200511

43512DBEARING (FOR FRONT AXLE HUB LH)

main90043-63253i200405-200612

main90043-63361i200707-201002

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21163i200405-200612

43515ROTOR, SKID CONTROL, FRONT

main89547-97201×2i200405-200612

4705FRONT DISC BRAKE CALIPER & DUST COVER

→ Go to FIG 47-05

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9004179274

main90041-79274

93260A6010

main93260-A6010

14 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota PASSO

This section contains 14 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota PASSO. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), HUB SUB-ASSY, FRONT AXLE, LH, BOLT, HUB (FOR FRONT AXLE LH), BEARING (FOR FRONT AXLE HUB RH).
