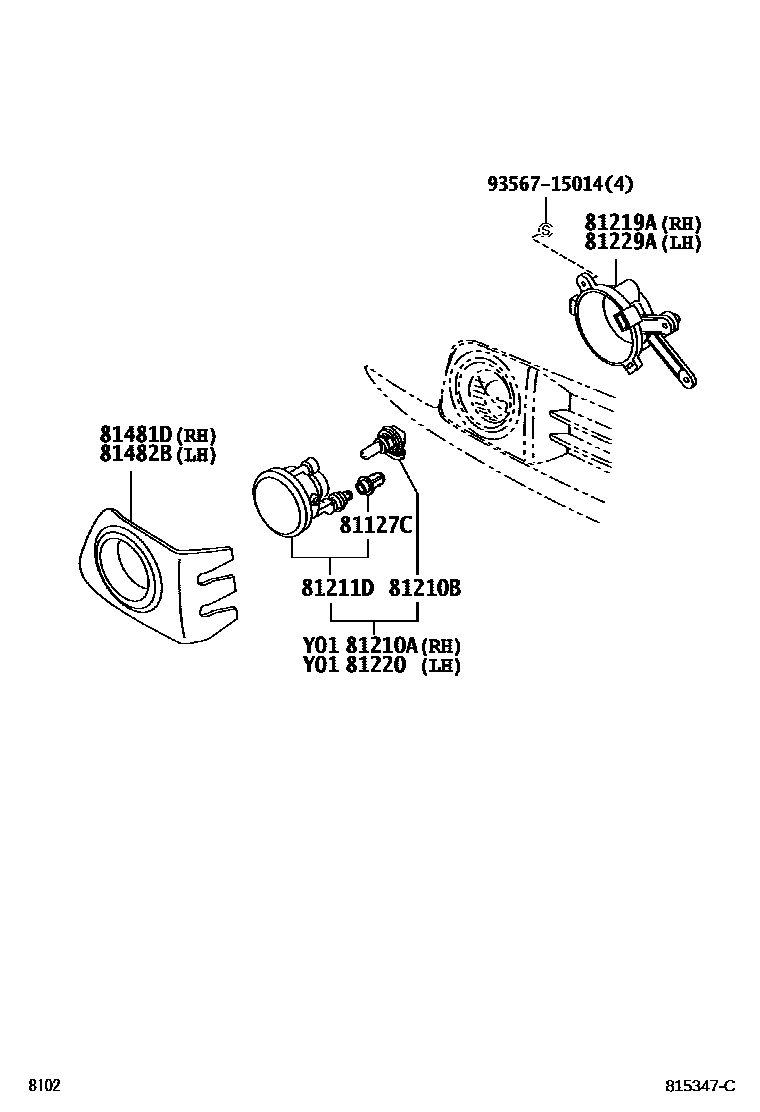

Toyota PASSO — FOG LAMP

81127CBEARING FOG LAMP

main81127-87401×2i200405-200612

81210ALAMP ASSY, FOG, RH

main81210-B1020i200412-200612

main81210-97229i200405-200511

81210BBULB, FOG LAMP

main90049-51144×2i200412-200612

main90049-51154×2i200612-201002

81211DLAMP UNIT, FOG LAMP

main81211-97215×2i200612-201002

81219ABRACKET, FOG LAMP, RH

main81219-B1010i200405-200612

main81219-B1050i200612-201002

81220LAMP ASSY, FOG, LH

main81220-B1020i200412-200612

main81210-97229i200612-201002

81229ABRACKET, FOG LAMP, LH

main81229-B1010i200405-200612

main81229-B1050i200612-201002

81481DCOVER, FOG LAMP, RH

main81481-B1010i200405-200612

main81481-B1100i200612-201002

81482BCOVER, FOG LAMP, LH

main81482-B1010i200405-200612

main81482-B1080i200612-201002

9356715014

main93567-15014

10 parts on this diagram · 3 diagrams in section

FOG LAMP for Toyota PASSO

This section contains 13 genuine Toyota parts for the FOG LAMP system of the Toyota PASSO. Key components include: BRACKET, FOG LAMP MOUNTING, RH, BRACKET, FOG LAMP MOUNTING, LH, BEARING FOG LAMP, LAMP ASSY, FOG, RH, BULB, FOG LAMP.
