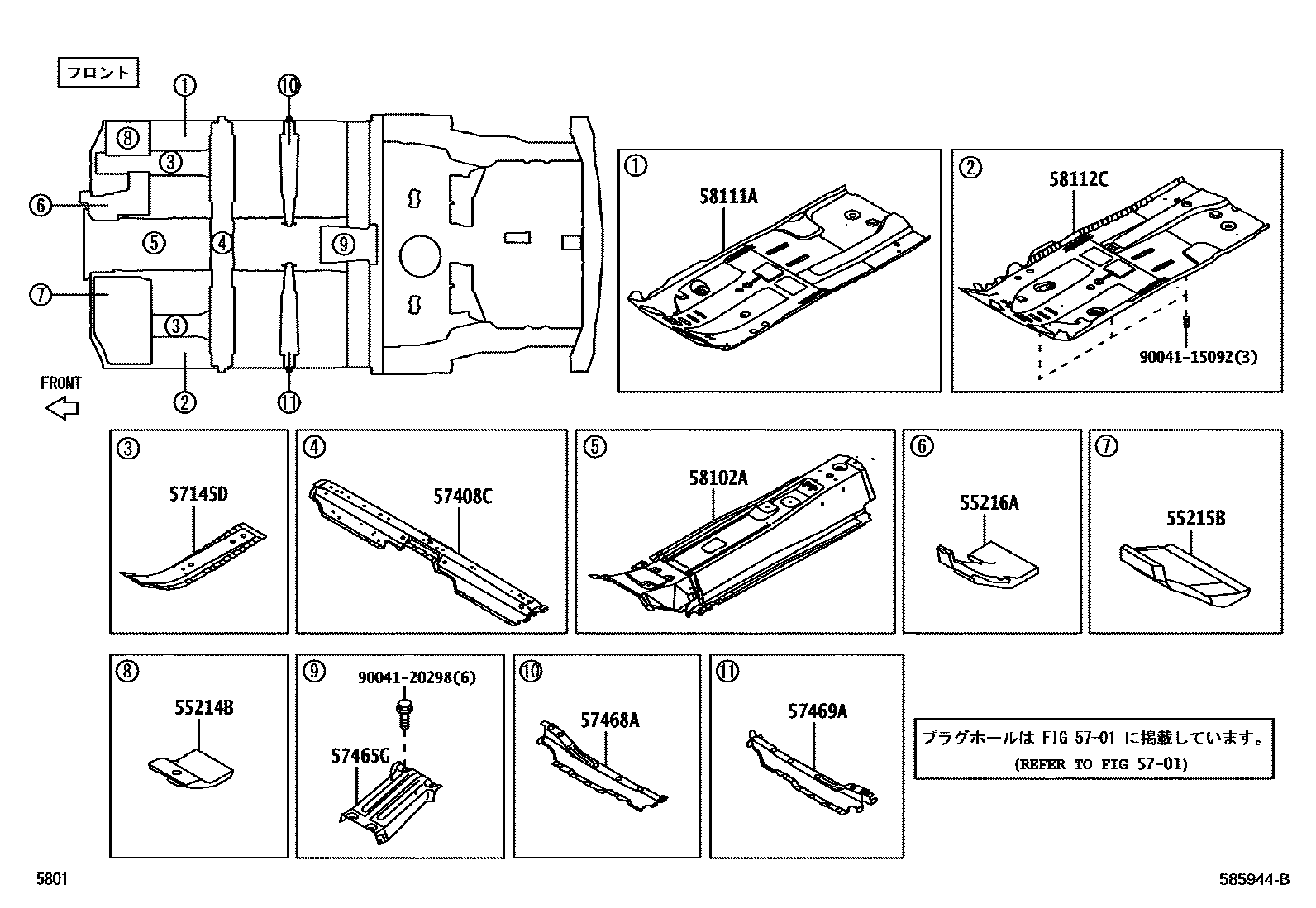

Toyota PASSO — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

55214BPAD, DASH PANEL INSULATOR, NO.2

main55214-B1050iM700,710201604-202309

55215BPAD, DASH PANEL INSULATOR, NO.3

main55215-B1050iM700,710201604-202309

55216APAD, DASH PANEL INSULATOR, NO.4

main55216-B1060iM700,710201604-202309

5701

57145DREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN

main57145-B1010×2iM700,710201604-202309

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57051-B1050iM700,710201604-202309

57465GGUSSET, CENTER FLOOR CROSSMEMBER

main57465-B1020iM700,710201604-202309

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-B1030iM700,710201604-202309

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-B1030iM700,710201604-202309

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-B1540iM700201604-202309

main58102-B1550iM710201604-202309

58111APAN, FRONT FLOOR, RH

main58111-B1010iM700,710201604-202309

58112CPAN, FRONT FLOOR, LH

main58112-B1020iM700,710201604-202309

9004115092

main90041-15092

9004120298

main90041-20298

14 parts on this diagram · 4 diagrams in section
