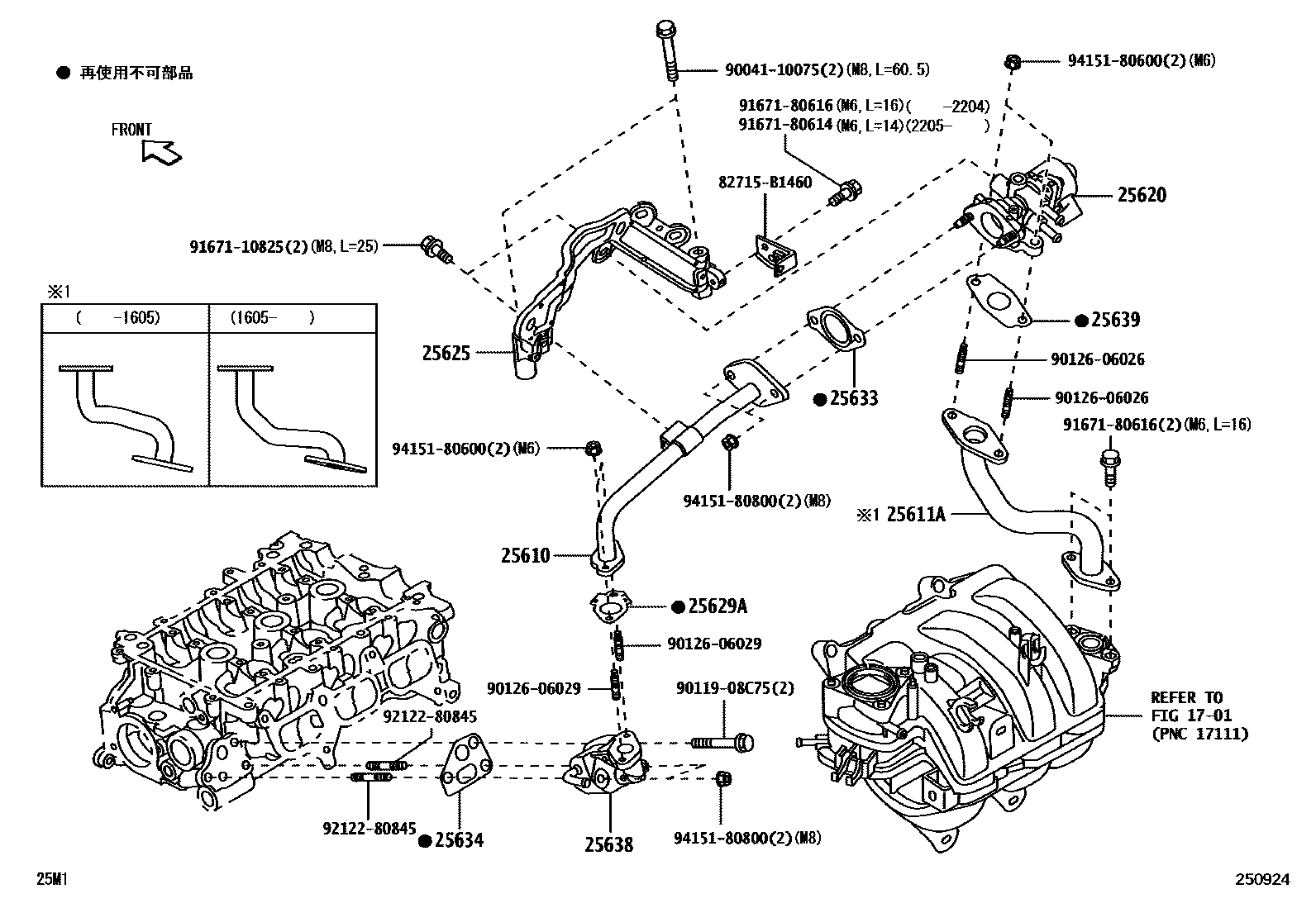

Toyota PASSO — EXHAUST GAS RECIRCULATION SYSTEM
1701MANIFOLD
25610PIPE ASSY, EGR
25611APIPE, EGR, NO.1
25620VALVE ASSY, EGR
25625BRACKET, EGR VALVE
25629AGASKET, EGR PIPE, NO.2
25633GASKET, EGR VALVE
25634GASKET, EGR PIPE
25638CHAMBER, EGR DELIVERY
25639GASKET, EGR PIPE, NO.3
82715B1460BRACKET,WIRING HARNESS CLAMP
main82715-B1460
9004110075
main90041-10075
9011908C75
main90119-08C75
9012606026
main90126-06026
9012606029
main90126-06029
9167110825
main91671-10825
9167180614
main91671-80614
9167180616
main91671-80616
9212280845
main92122-80845
9415180600
main94151-80600
9415180800
main94151-80800
21 parts on this diagram · 1 diagram in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota PASSO
This section contains 21 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota PASSO. Key components include: MANIFOLD, PIPE ASSY, EGR, PIPE, EGR, NO.1, VALVE ASSY, EGR, BRACKET, EGR VALVE.
