Toyota PASSO — EXHAUST GAS RECIRCULATION SYSTEM

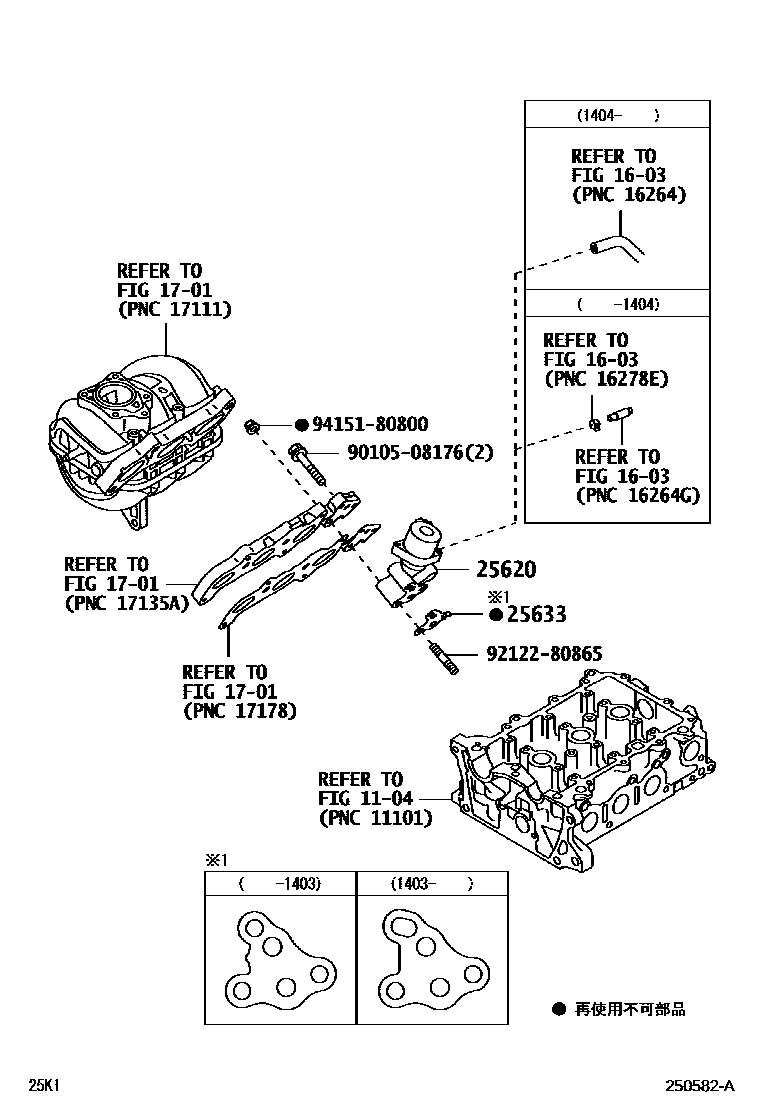

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25620VALVE ASSY, EGR

main25620-40020i201002-201206

main25620-40030i201404

main25620-47020i201404

25633GASKET, EGR VALVE

main25633-40020i201002-201206

main25633-40030i201404

main25633-47010i201404

9010508176

main90105-08176

9212280865

main92122-80865

9415180800

main94151-80800

8 parts on this diagram · 2 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota PASSO

This section contains 15 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota PASSO. Key components include: CYLINDER HEAD, RADIATOR & WATER OUTLET, MANIFOLD, PIPE, EGR, NO.1, VALVE ASSY, EGR.
