Toyota PASSO — EXHAUST GAS RECIRCULATION SYSTEM

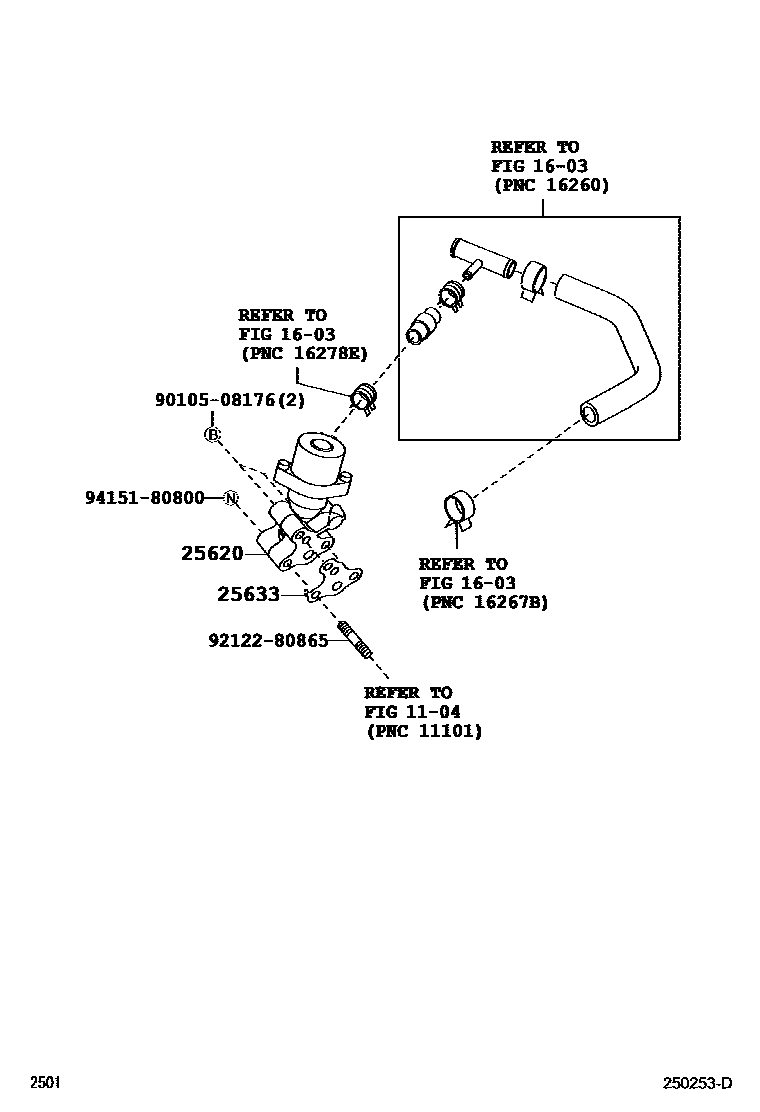

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

25620VALVE ASSY, EGR

main25620-40020i200405-200612

25633GASKET, EGR VALVE

main25633-40020i200405-200612

9010508176

main90105-08176

9212280865

main92122-80865

9415180800

main94151-80800

7 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota PASSO

This section contains 7 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota PASSO. Key components include: CYLINDER HEAD, RADIATOR & WATER OUTLET, VALVE ASSY, EGR, GASKET, EGR VALVE.
