Toyota PASSO — ENGINE OVERHAUL GASKET KIT

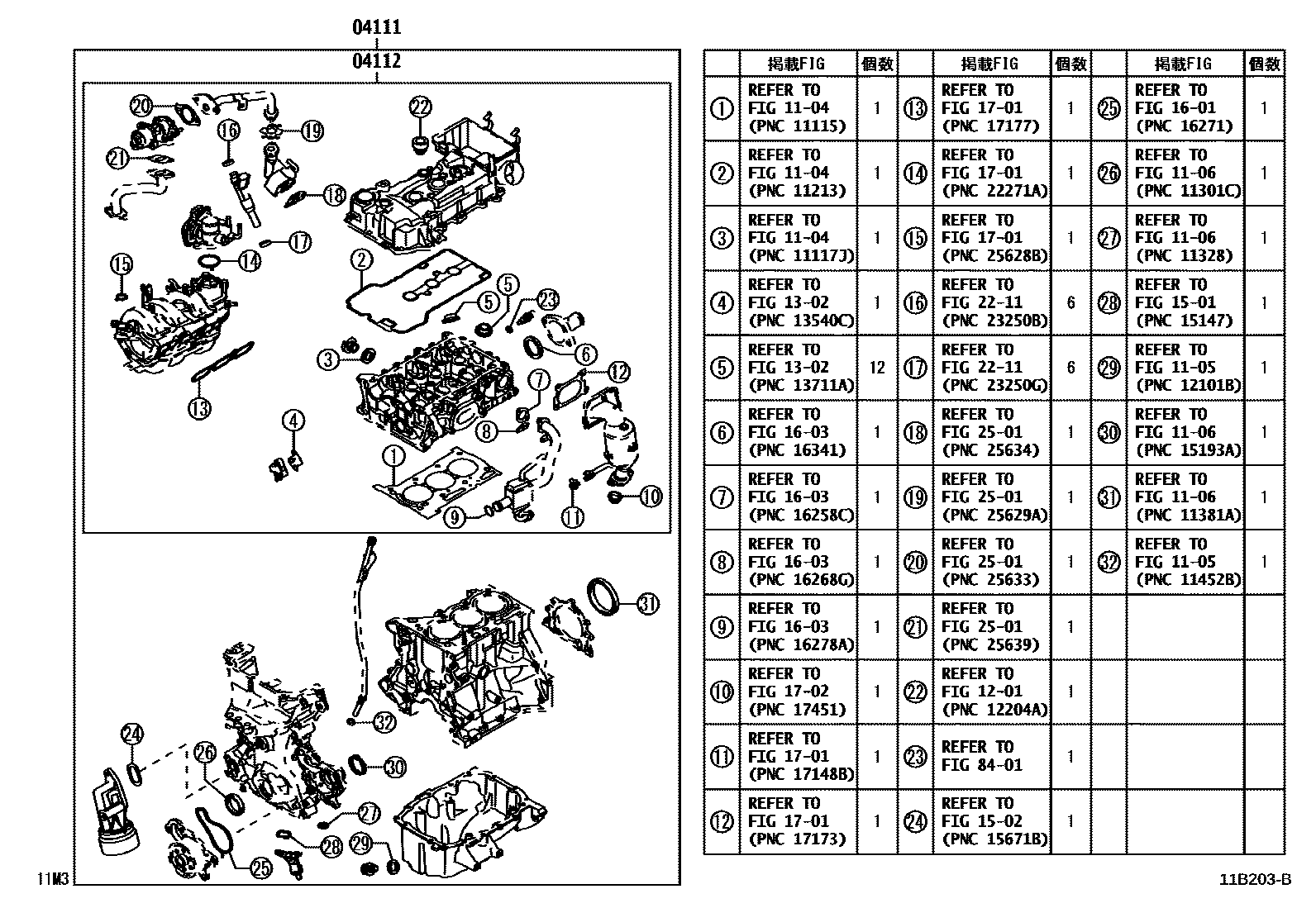

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-B1061i201604-201807
main04111-B1062i201807-201811
main04111-B1064i201811-201910
main04111-B1065i201910-202309
04112GASKET KIT, ENGINE VALVE GRIND
main04112-B1061i201604-201807
main04112-B1062i201807-201811
main04112-B1064i201811-201910
main04112-B1065i201910-202309
1104CYLINDER HEAD
→ Go to FIG 11-04
1105CYLINDER BLOCK
→ Go to FIG 11-05
1106TIMING GEAR COVER & REAR END PLATE
→ Go to FIG 11-06
1201VENTILATION HOSE
→ Go to FIG 12-01
1302CAMSHAFT & VALVE
→ Go to FIG 13-02
1501ENGINE OIL PUMP
→ Go to FIG 15-01
1502OIL FILTER
→ Go to FIG 15-02
1601WATER PUMP
→ Go to FIG 16-01
1603RADIATOR & WATER OUTLET
→ Go to FIG 16-03
1701MANIFOLD
→ Go to FIG 17-01
1702EXHAUST PIPE
→ Go to FIG 17-02
2211FUEL INJECTION SYSTEM
→ Go to FIG 22-11
2501EXHAUST GAS RECIRCULATION SYSTEM
→ Go to FIG 25-01
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01

16 parts on this diagram · 1 diagram in section

ENGINE OVERHAUL GASKET KIT for Toyota PASSO

This section contains 16 genuine Toyota parts for the ENGINE OVERHAUL GASKET KIT system of the Toyota PASSO. Key components include: GASKET KIT, ENGINE OVERHAUL, GASKET KIT, ENGINE VALVE GRIND, CYLINDER HEAD, CYLINDER BLOCK, TIMING GEAR COVER & REAR END PLATE.
