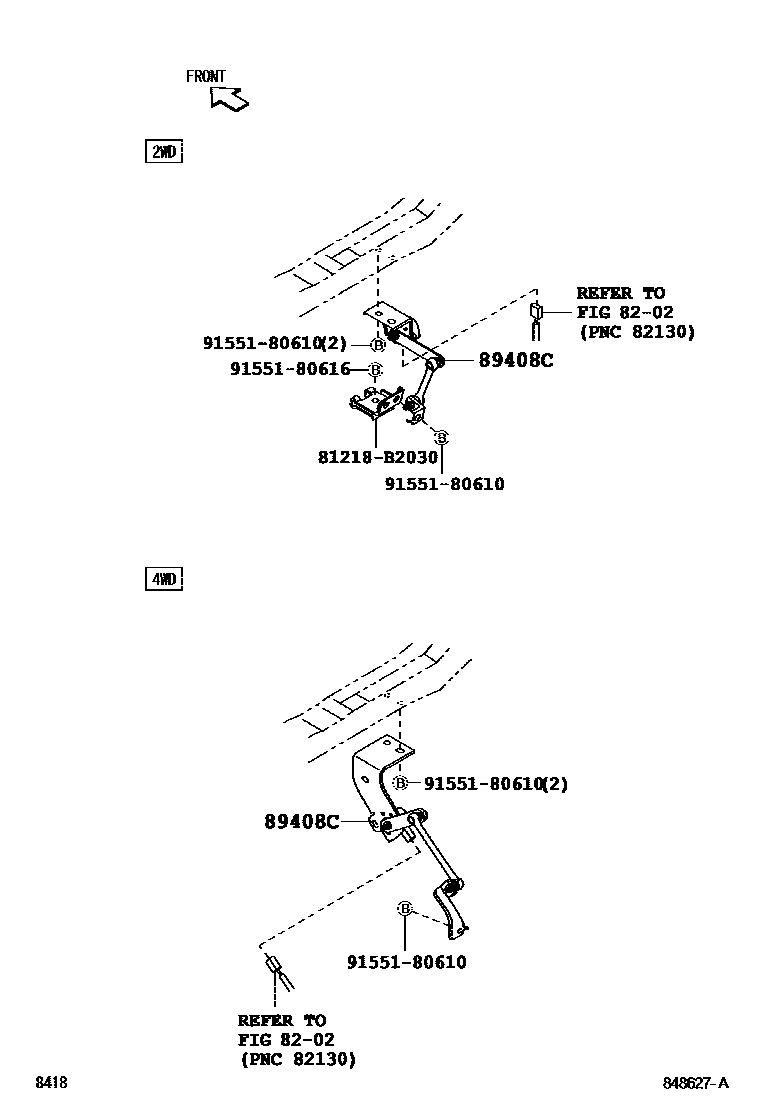

Toyota PASSO — ELECTRONIC HEIGHT CONTROL

8202WIRING & CLAMP

→ Go to FIG 82-02

89408CSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

81218B2030REFLECTOR, FOG LAMP

main81218-B2030

9155180610

main91551-80610

9155180616

main91551-80616

5 parts on this diagram · 1 diagram in section

ELECTRONIC HEIGHT CONTROL for Toyota PASSO

This section contains 5 genuine Toyota parts for the ELECTRONIC HEIGHT CONTROL system of the Toyota PASSO. Key components include: WIRING & CLAMP, SENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH, REFLECTOR, FOG LAMP.
