Toyota PASSO — ELECTRONIC FUEL INJECTION SYSTEM

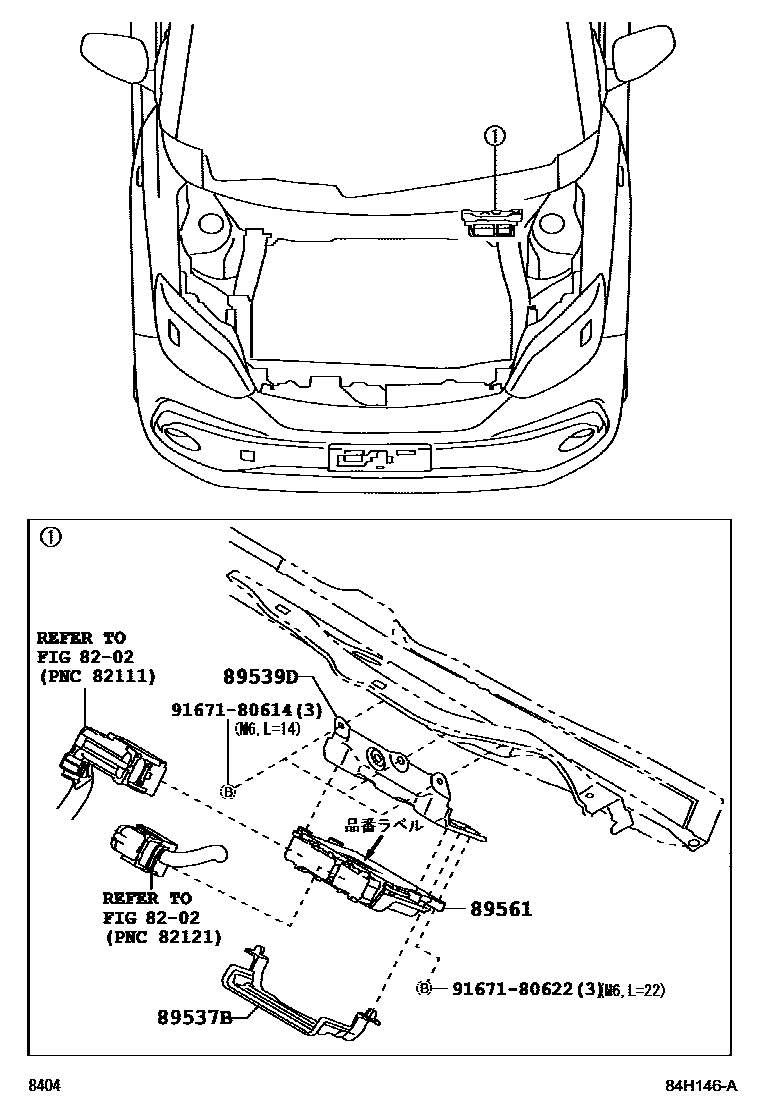

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

89537BCOVER, COMPUTER

main89279-B1020i201604-202309

89539DBRACKET, COMPUTER

main89539-B1270i201604-202309

89561COMPUTER, FUEL INJECTION

main89560-B1M41supersedes 89560-B1P12i201810-201902

main89560-B1M42i201903-201910

main89560-B1M43supersedes 89560-B1P13i201911-202203

main89560-B1M51supersedes 89560-B1P22i201810-201902

main89560-B1M52i201903-201910

main89560-B1M53supersedes 89560-B1P23i201911-202203

main89560-B1P11i201809-201902

main89560-B1P21i201809-201902

main89560-B1S50i202203-202208

main89560-B1S60i202203-202208

main89560-B1S90i202208-202309

main89560-B1T00i202208-202309

main89560-B1J80supersedes 89560-B1L90i201605-201611

main89560-B1J81supersedes 89560-B1L93i201612-201803

main89560-B1J82supersedes 89560-B1L93i201804-201808

main89560-B1J90supersedes 89560-B1K00i201604-201605

main89560-B1K00supersedes 89560-B1K20i201604-201605

main89560-B1K10supersedes 89560-B1K20i201604-201605

main89560-B1K30supersedes 89560-B1K40i201604-201605

main89560-B1K40supersedes 89560-B1K60i201604-201605

main89560-B1K50supersedes 89560-B1K60i201604-201605

main89560-B1L70supersedes 89560-B1L90i201605-201611

main89560-B1L71supersedes 89560-B1L93i201612-201803

main89560-B1L72supersedes 89560-B1L93i201804-201808

main89560-B1L80supersedes 89560-B1L90i201605-201611

main89560-B1L81supersedes 89560-B1L93i201612-201803

main89560-B1L82supersedes 89560-B1L93i201804-201808

main89560-B1L83supersedes 89560-B1L93i201809-201810

main89560-B1M00supersedes 89560-B1M10i201605-201611

main89560-B1M01supersedes 89560-B1M12i201612-201803

main89560-B1M02supersedes 89560-B1M12i201804-201808

main89560-B1M10i201605-201611

main89560-B1M11supersedes 89560-B1M33i201612-201803

main89560-B1M12supersedes 89560-B1M33i201804-201808

main89560-B1M20i201605-201611

main89560-B1M21supersedes 89560-B1M33i201612-201803

main89560-B1M22supersedes 89560-B1M33i201804-201808

main89560-B1M23supersedes 89560-B1M33i201809-201810

9167180614

main91671-80614

9167180622

main91671-80622

6 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota PASSO

This section contains 6 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota PASSO. Key components include: WIRING & CLAMP, COVER, COMPUTER, BRACKET, COMPUTER, COMPUTER, FUEL INJECTION.
