Toyota PASSO — ELECTRONIC FUEL INJECTION SYSTEM

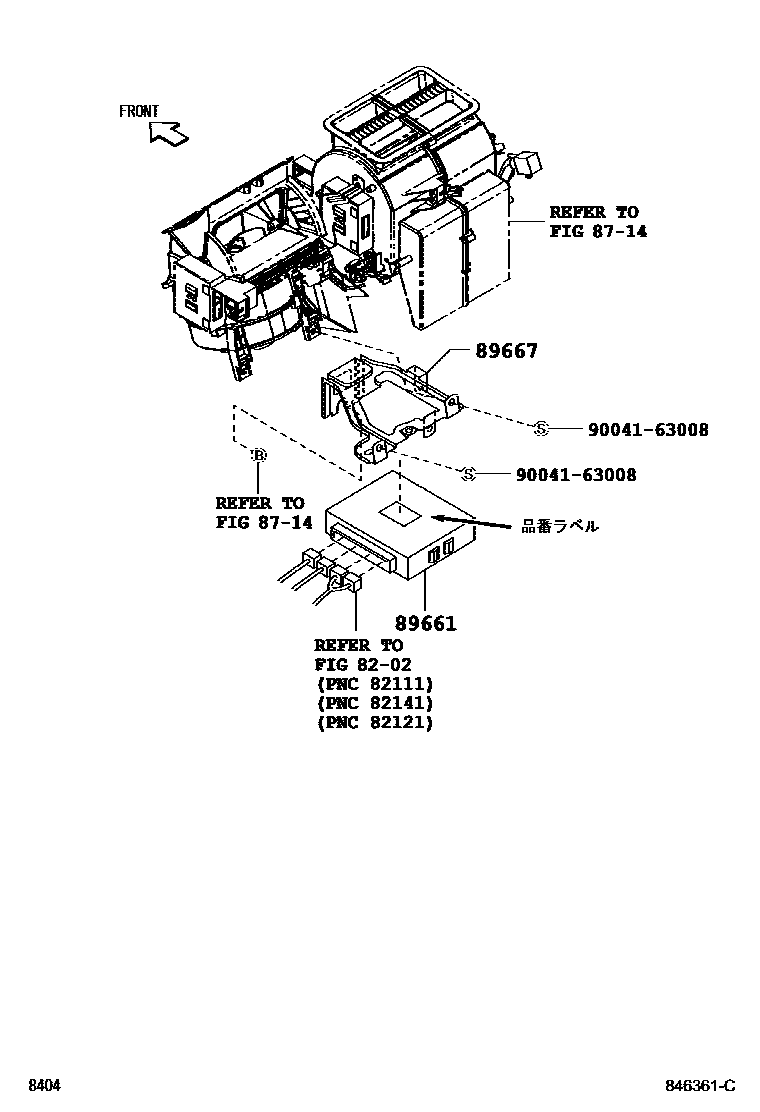

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

89661COMPUTER, ENGINE CONTROL

main89560-B1011i200405-200511

main89560-B1081i200405-200511

main89560-B1620i200511-200612

main89560-B1640i200511-200612

main89560-B1740i200612-201002

main89560-B1780i200612-200808

main89560-B1781i200808-200812

main89560-B1782i200901-201002

main89560-B1790i200612-200808

main89560-B1791i200808-200812

main89560-B1792i200901-201002

main89560-B1141i200405-200511

main89560-B1201i200405-200511

main89560-B1630i200511-200612

main89560-B1650i200511-200612

main89560-B1750i200612-201002

main89560-B1760i200612-200808

main89560-B1761i200808-200812

main89560-B1762i200901-201002

main89560-B1770i200612-200808

main89560-B1771i200808-200812

main89560-B1772i200901-201002

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-B1030i200405-200612

9004163008

main90041-63008

5 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota PASSO

This section contains 5 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota PASSO. Key components include: WIRING & CLAMP, HEATING & AIR CONDITIONING - COOLER UNIT, COMPUTER, ENGINE CONTROL, BRACKET, ENGINE CONTROL COMPUTER.

Toyota PASSO ELECTRONIC FUEL INJECTION SYSTEM — Parts Diagram | EPC Data
