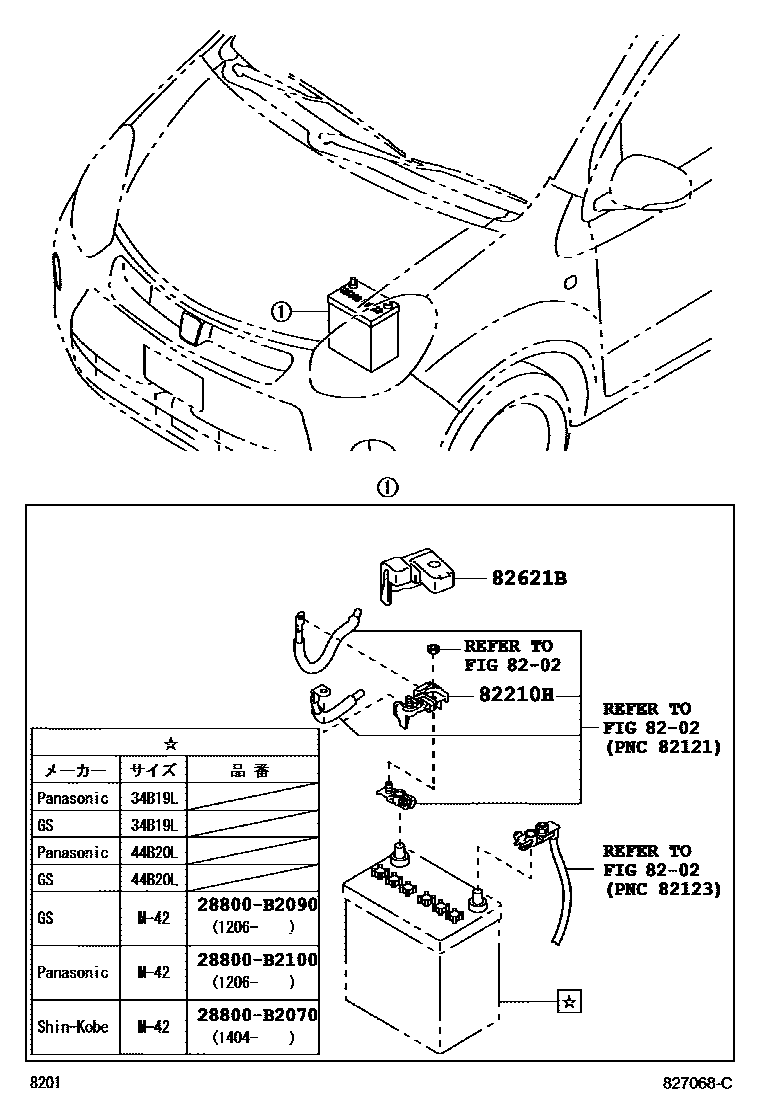

Toyota PASSO — BATTERY & BATTERY CABLE

8202WIRING & CLAMP

→ Go to FIG 82-02

82210HFUSIBLE LINK

main82620-B1010i201002-201206

82621BCOVER, FUSIBLE LINK

main82621-B1010i201002-201206

28800B2070BATTERY

main28800-B2070

28800B2090BATTERY

main28800-B2090

28800B2100BATTERY

main28800-B2100

6 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota PASSO

This section contains 6 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota PASSO. Key components include: WIRING & CLAMP, FUSIBLE LINK, COVER, FUSIBLE LINK, BATTERY.
