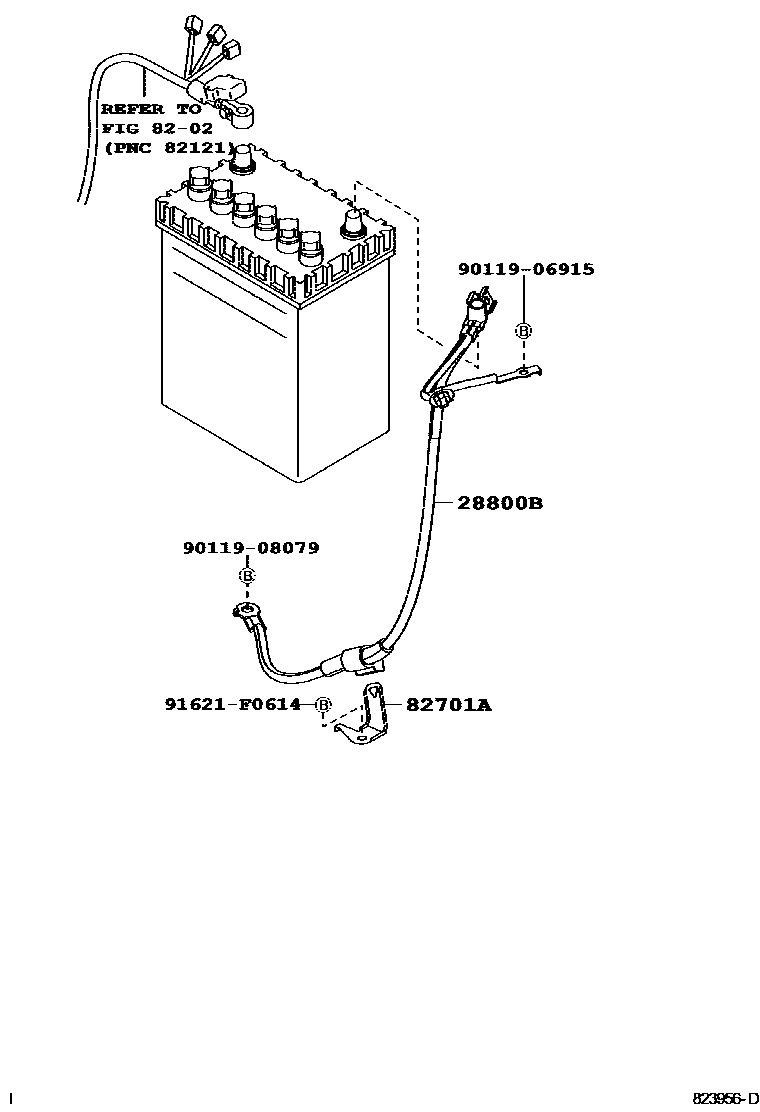

Toyota PASSO — BATTERY & BATTERY CABLE

28800BCABLE, BATTERY TO GROUND

main82123-B1020supersedes 82123-B1010i200405-200612

main82123-B1080supersedes 82123-B1070i200612-201002

8202WIRING & CLAMP

→ Go to FIG 82-02

82701ABRACKET SUB-ASSY, WIRE HARNESS

main82715-B1070i200405-200612

9011906915

main90119-06915

9011908079

main90119-08079

91621F0614

main91621-F0614

6 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota PASSO

This section contains 6 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota PASSO. Key components include: CABLE, BATTERY TO GROUND, WIRING & CLAMP, BRACKET SUB-ASSY, WIRE HARNESS.
