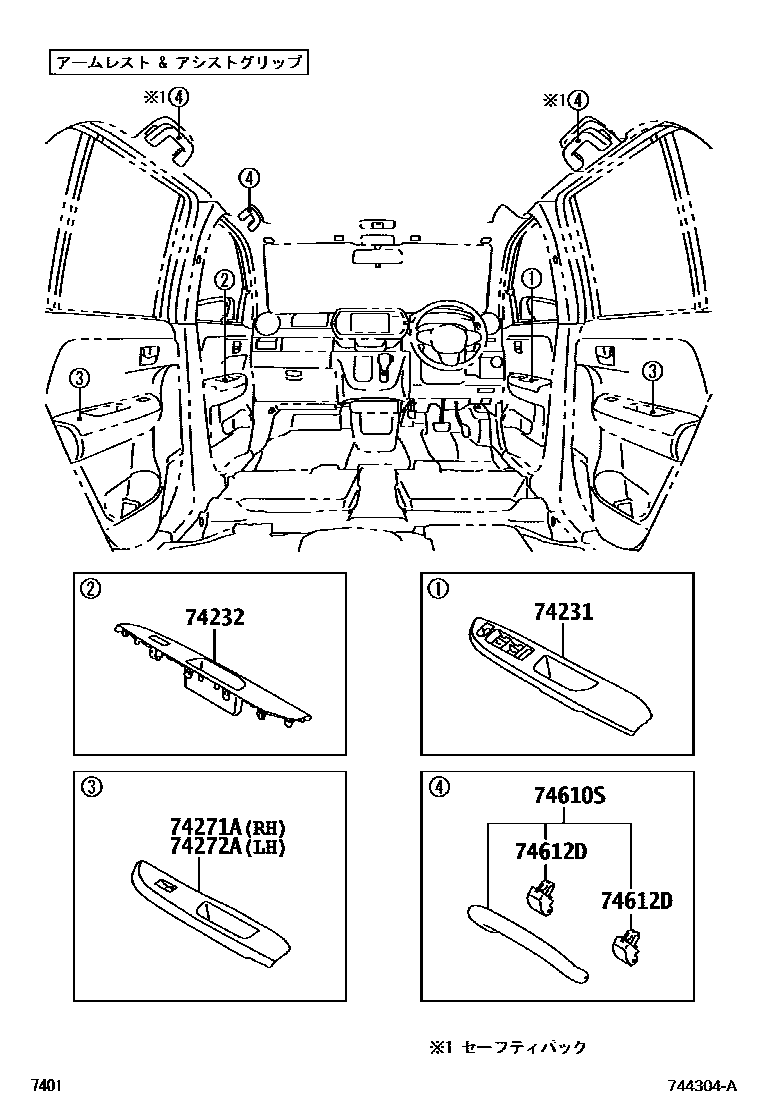

Toyota PASSO — ARMREST & VISOR

0001 1������ & ���������� 0002 1�����

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-B1130-B0iM700,710..MODA201604-202309

WARM GRAY,TRIM1#

main74231-B1130-B1iM700,710..X201604-202309

DK.GRAY,TRIM4#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-B1130-B0iM700,710..MODA201604-202309

WARM GRAY,TRIM1#

main74232-B1130-B1iM700,710..X201604-202309

DK.GRAY,TRIM4#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-B1110-B0iM700,710..MODA201604-202309

WARM GRAY,TRIM1#

main74271-B1110-B1iM700,710..X201604-202309

DK.GRAY,TRIM4#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-B1110-B0iM700,710..MODA201604-202309

WARM GRAY,TRIM1#

main74272-B1110-B1iM700,710..X201604-202309

DK.GRAY,TRIM4#

74610SGRIP ASSY, ASSIST

main74610-B2030-B0×3supersedes 74610-B2030-B0iM700,710..X201810-202309

74612DCOVER, ASSIST GRIP

main74612-B2070-B0×6supersedes 74612-B2070-B0iM700,710..X201810-202309

6 parts on this diagram · 2 diagrams in section
