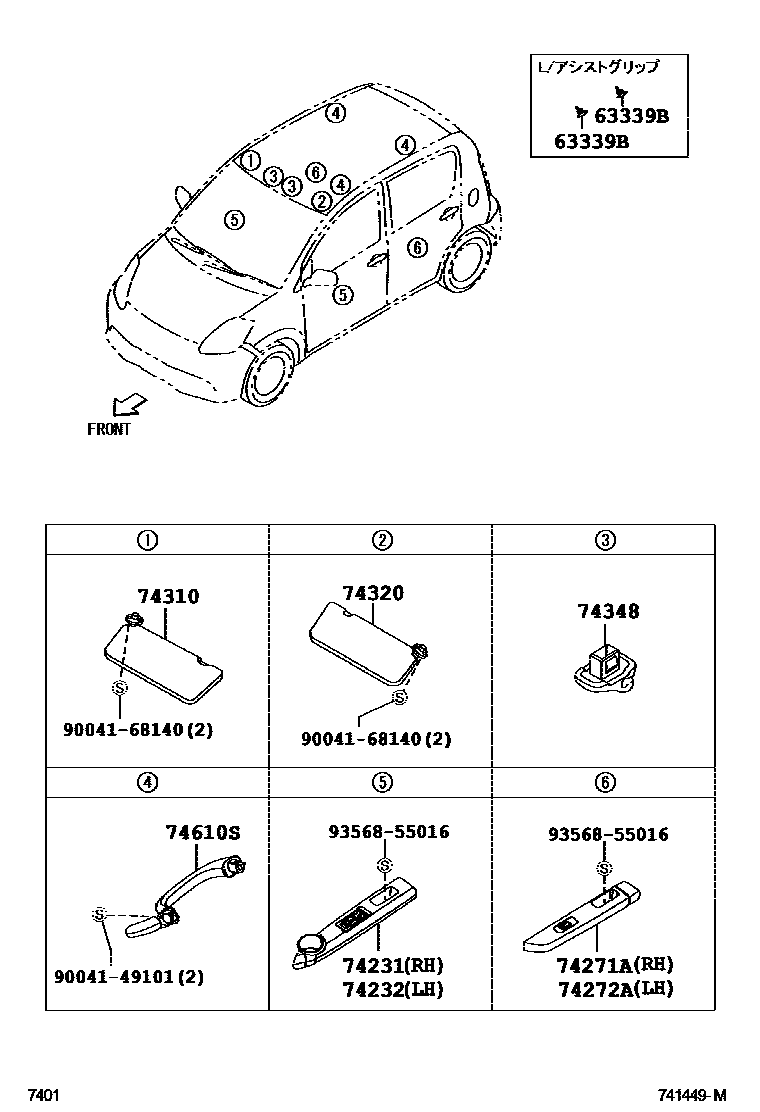

Toyota PASSO — ARMREST & VISOR
63339BCOVER,
LT.GRAY,TRIM1#
74231PANEL, FRONT ARMREST BASE, UPPER RH
GRAY,TRIM1#
GRAY,TRIM12
-,TRIM1#
GREGE,TRIM1#
GREGE,TRIM11
74232PANEL, FRONT ARMREST BASE, UPPER LH
GRAY,TRIM12
GRAY,TRIM1#
-,TRIM1#
GREGE,TRIM11
GREGE,TRIM1#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
GRAY,TRIM1#
GRAY,TRIM12
-,TRIM1#
GREGE,TRIM1#
GREGE,TRIM11
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
GRAY,TRIM1#
GRAY,TRIM12
-,TRIM1#
GREGE,TRIM1#
GREGE,TRIM11
74310VISOR ASSY, RH
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
74320VISOR ASSY, LH
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
74348HOLDER, VISOR
LT.GRAY,TRIM1#
74610SGRIP ASSY, ASSIST
LT.GRAY,TRIM1#
9004149101
main90041-49101
9004168140
main90041-68140
9356855016
main93568-55016
12 parts on this diagram · 2 diagrams in section
ARMREST & VISOR for Toyota PASSO
This section contains 14 genuine Toyota parts for the ARMREST & VISOR system of the Toyota PASSO. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, COVER,, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH.
