Toyota PASSO — ALTERNATOR

12511FBRACKET, ALTERNATOR, NO.1

main82715-5C210×2i201604-202309

12511GBRACKET, ALTERNATOR, NO.2

main12511-B1010i201604-202309

27020ALTERNATOR ASSY

main27060-B1150i201604-202307

main27060-B1151i202308-202309

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-B1070i201604-202308

main27310-B1120i202308-202309

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main9004C-37008i201604-202309

27330ROTOR ASSY, ALTERNATOR

main27330-B1030i201604-202308

main27330-B2020i202308-202309

27360COIL ASSY, ALTERNATOR

main27360-B1010i201604-201711

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-B1020i201604-202309

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W210i201604-202309

27416CAP, ALTERNATOR PULLEY

main27416-0W020i201604-202204

main27416-B1010i202205-202309

27444PACKING, ALTERNATOR BEARING COVER

main27444-B1010i201604-202309

8202WIRING & CLAMP

→ Go to FIG 82-02

9155281075

main91552-81075

9167180614

main91671-80614

9167180825

main91671-80825

9415180600

main94151-80600

16 parts on this diagram · 1 diagram in section

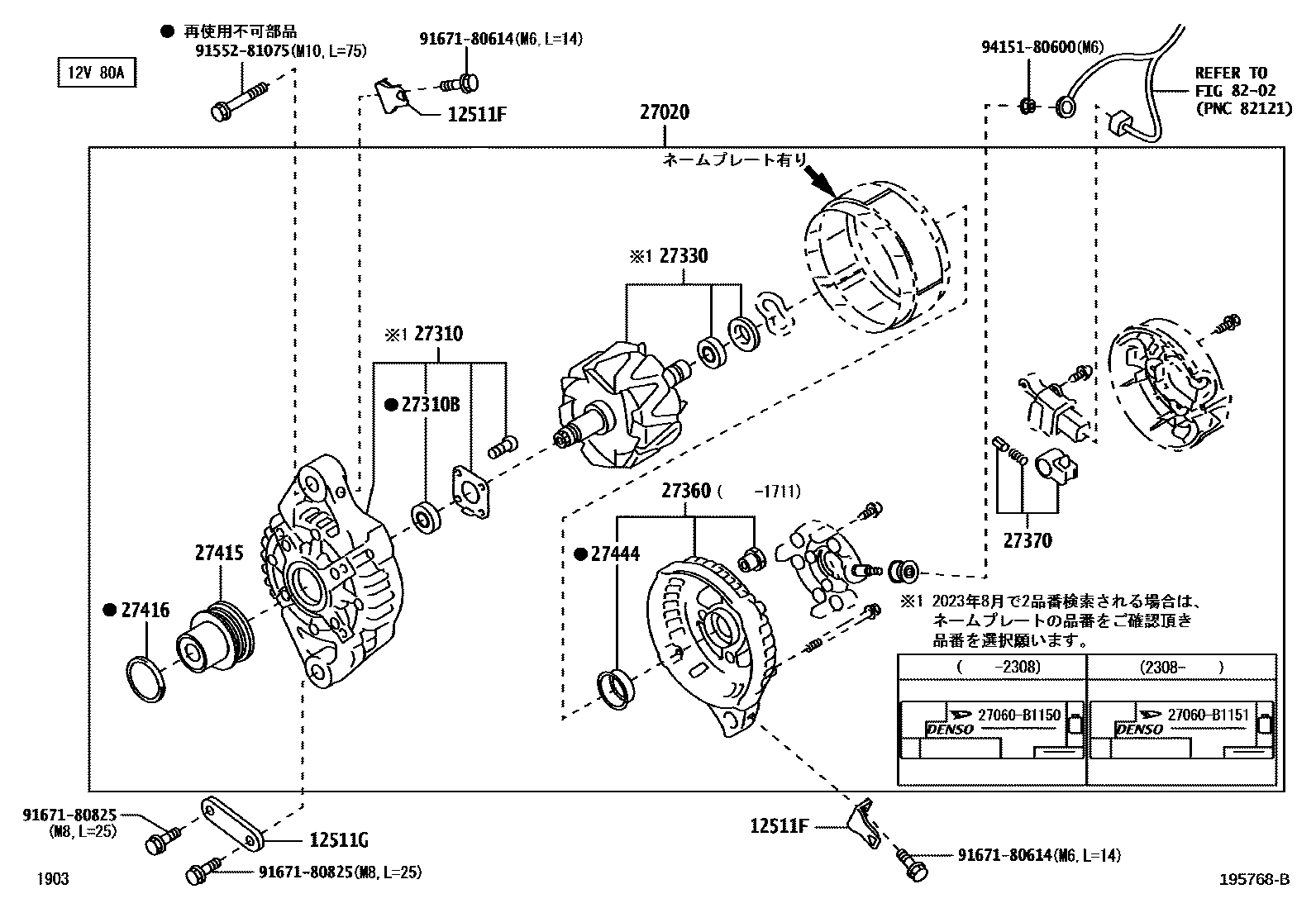

ALTERNATOR for Toyota PASSO

This section contains 16 genuine Toyota parts for the ALTERNATOR system of the Toyota PASSO. Key components include: BRACKET, ALTERNATOR, NO.1, BRACKET, ALTERNATOR, NO.2, ALTERNATOR ASSY, FRAME ASSY, DRIVE END, ALTERNATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME).
