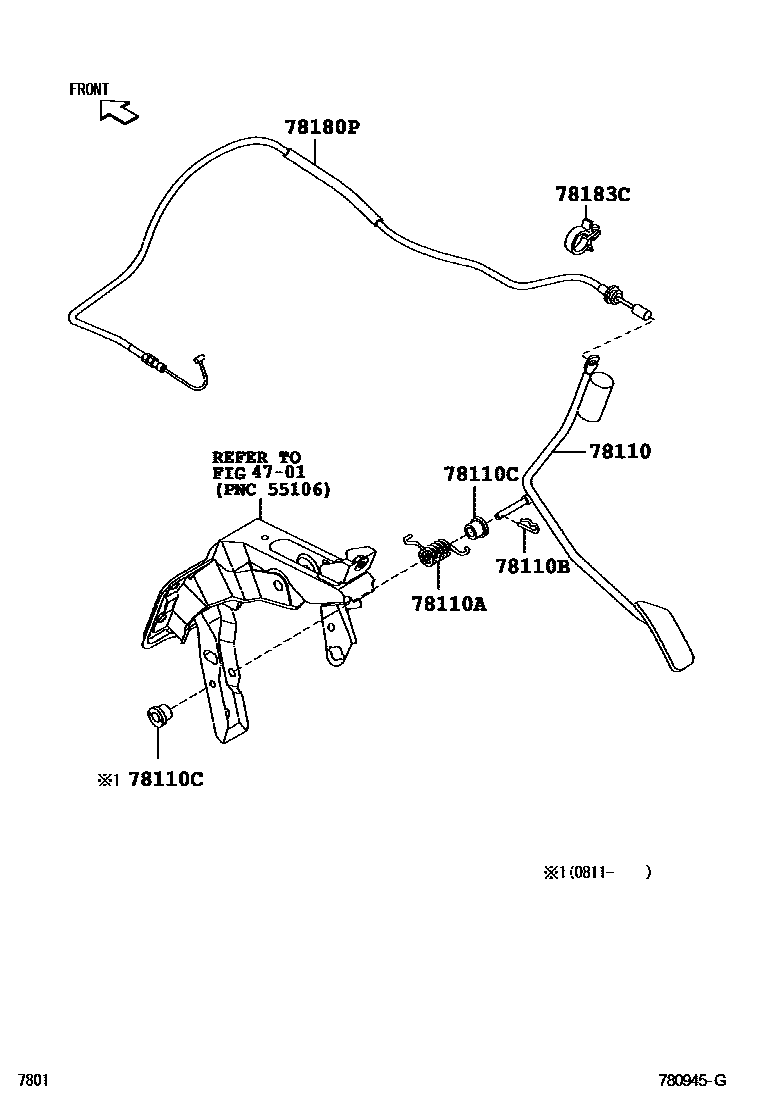

Toyota PASSO — ACCELERATOR LINK

4701

78110ROD ASSY, ACCELERATOR PEDAL

main78101-B1010iKGC1#,QNC10200405-200510

main78101-B1011iKGC1#,QNC10200511-200612

main78101-B1060iKGC1#,QNC10200811-201002

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main78214-B1010iQNC10;KGC1#..G,X200405-200506

main78214-B1011iKGC1#,QNC10200507-200612

78110BCLIP, ACCELERATOR BELLCRANK

main90044-68207iKGC1#,QNC10200405-200612

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90043-86112iKGC1#,QNC10200612-200811

main90043-86134×2iKGC1#,QNC10200811-201002

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-B1010iKGC1#200405-200612

main78180-B1011iKGC1#200803-201002

main78180-B1020iQNC10200612-200902

main78180-B1021iQNC10200903-201002

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-B2020iKGC1#,QNC10200405-200612

7 parts on this diagram · 1 diagram in section
