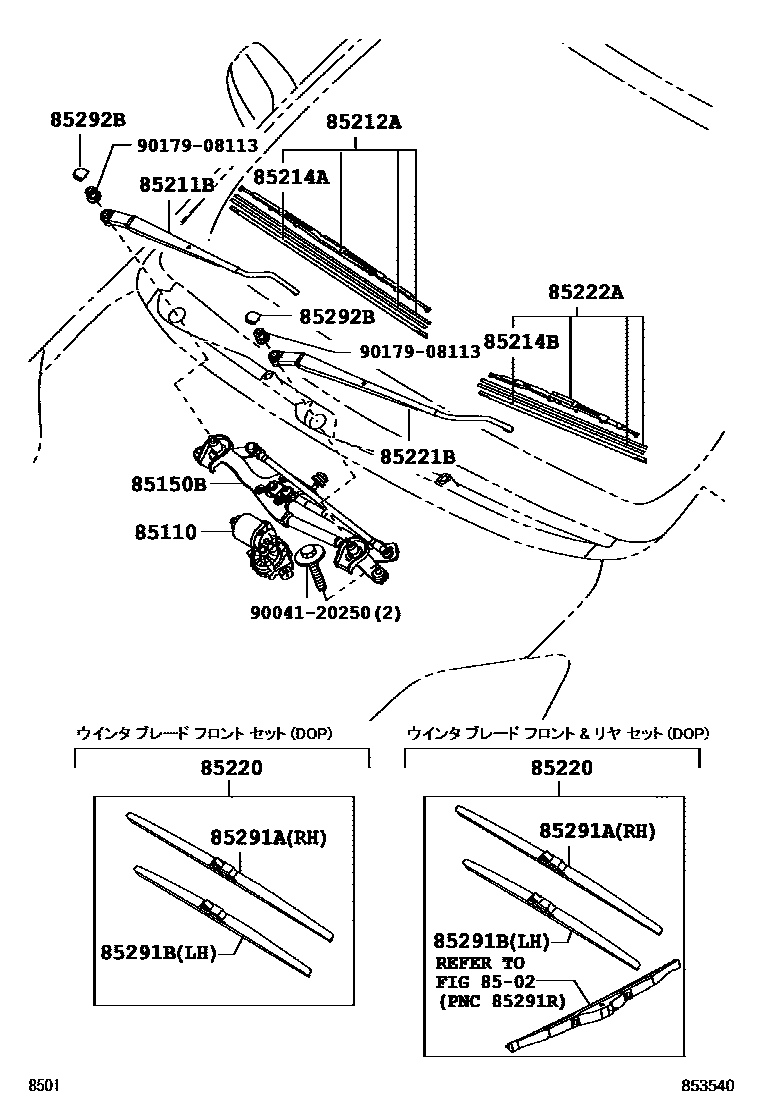

Toyota PASSO SETTE — WINDSHIELD WIPER

8502REAR WIPER

→ Go to FIG 85-02

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-B1080supersedes 85110-B1070i200812

85150BLINK ASSY, WIPER

main85150-B1050i200812

85211BARM, FRONT WIPER, RH

main85211-B1070i200812

85212ABLADE, FR WIPER, RH

main85212-B2090i200812

85214ARUBBER, WIPER, RH

main85214-B2130i200812

85214BRUBBER, WIPER, LH

main85214-B2090i200812

85220BLADE ASSY, WINDSHIELD WIPER

main85201-B1050i200812-201203

main85201-B1060i200812-201203

85221BARM, FRONT WIPER, LH

main85221-B1070i200812

85222ABLADE, FR WIPER, LH

main85222-B2060i200812

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-50060i200812-201203

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-44080i200812-201203

85292BCAP, FRONT WIPER ARM HEAD

main85292-12020×2i200812

9004120250

main90041-20250

9017908113

main90179-08113

15 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota PASSO SETTE

This section contains 15 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota PASSO SETTE. Key components include: REAR WIPER, MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
