Toyota PASSO SETTE — WINDSHIELD WASHER

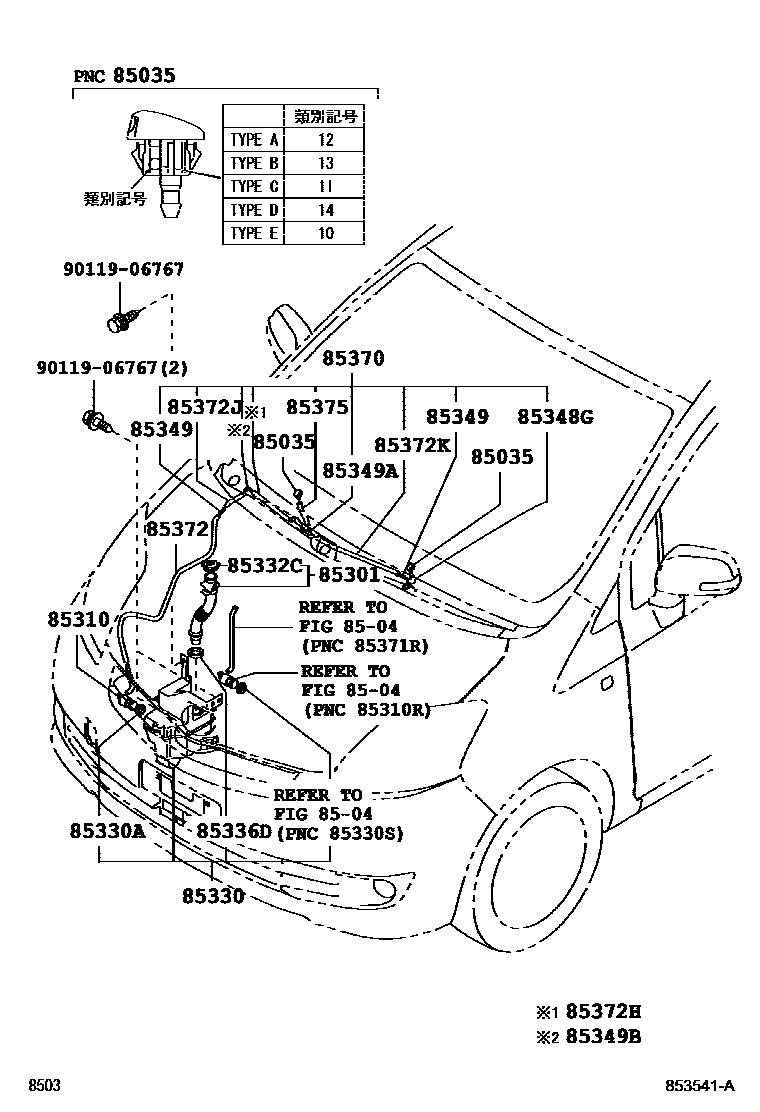

Parts diagram

85035NOZZLE SUB-ASSY, WASHER

main85381-B1100i200812-201203

main85381-B1110i200812-201203

main85381-B1120i200812-201203

main85381-B1130i200812-201203

main85381-B2170i200812-201203

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-B1020i200812

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-97502i200812

85330JAR ASSY, WINDSHIELD WASHER

main85315-B1020i200812

85330ABUSH, WINDSHIELD WASHER JAR

main85373-97202i200812

85332CCAP, FRONT WASHER TANK

main85332-B1020i200812

85336DPACKING, WINDSHIELD WASHER JAR

main85336-97202i200812

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85355-87701i200812

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-87201×2i200812

85349AJOINT, WINDSHIELD WASHER HOSE, NO.2

main85376-B1010i200812

85349BJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-87602i200812

85370HOSE ASSY, WINDSHIELD WASHER

main85370-B1180i200812-201203

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85375-87502i200812

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main85374-87401i200812

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main85374-87401i200812

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main85343-97401i200812

85375HOSE, WINDSHIELD WASHER, NO.1(FOR LEVEL GAGE)

main85375-87502i200812

9011906767

main90119-06767

19 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota PASSO SETTE

This section contains 19 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PASSO SETTE. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
