Toyota PASSO SETTE — WATER PUMP

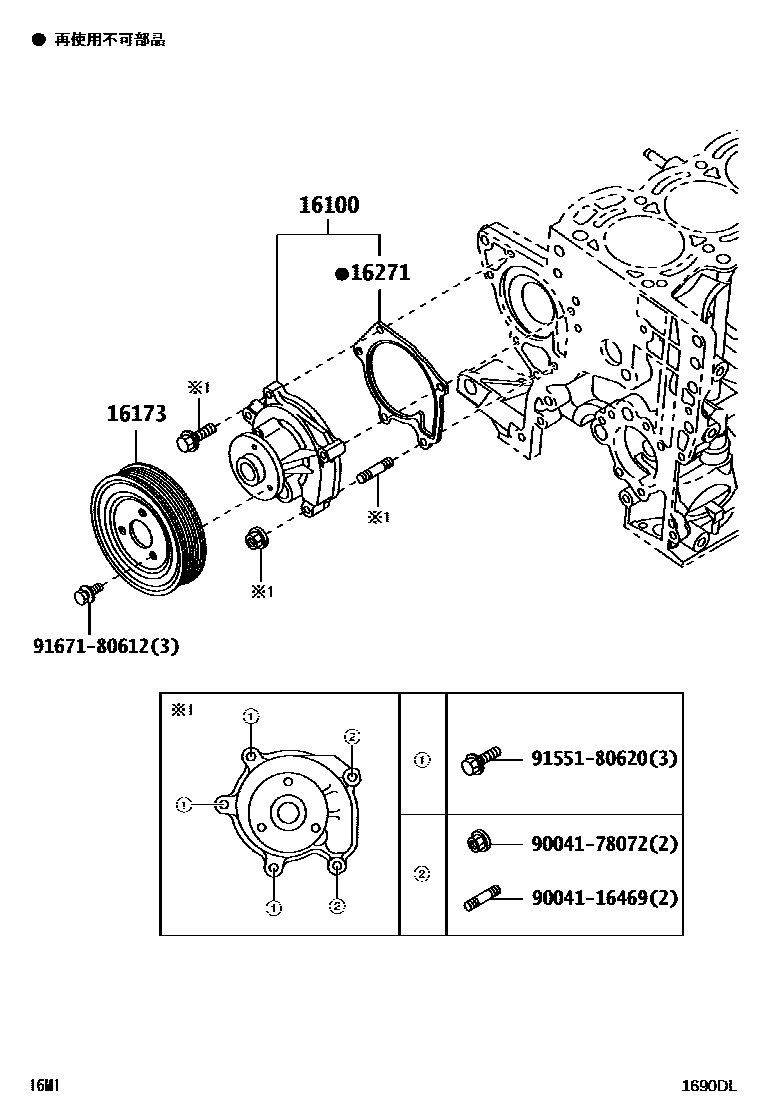

Parts diagram

16100PUMP ASSY, ENGINE WATER

main16100-B9010i200812

16173PULLEY, WATER PUMP

main16173-23040i200812

16271GASKET, WATER PUMP

main16271-B1010i200812

9004116469

main90041-16469

9004178072

main90041-78072

9155180620

main91551-80620

9167180612

main91671-80612

7 parts on this diagram · 1 diagram in section

WATER PUMP for Toyota PASSO SETTE

This section contains 7 genuine Toyota parts for the WATER PUMP system of the Toyota PASSO SETTE. Key components include: PUMP ASSY, ENGINE WATER, PULLEY, WATER PUMP, GASKET, WATER PUMP.
