Toyota PASSO SETTE — SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
DK. BROWN,TRIM4#
33550FLOOR SHIFT ASSY, TRANSMISSION
GRAY,TRIM4#
GRAY,TRIM4#
33662ACUSHION, SHIFT LEVER GUIDE
33821FCLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE)
3513THROTTLE LINK & VALVE LEVER (ATM)
35955BULB, POSITION INDICATOR LAMP
35970FHOUSING ASSY, POSITION INDICATOR
9165160620
main91651-60620
91651G0616
main91651-G0616
9167180830
main91671-80830
12 parts on this diagram · 2 diagrams in section

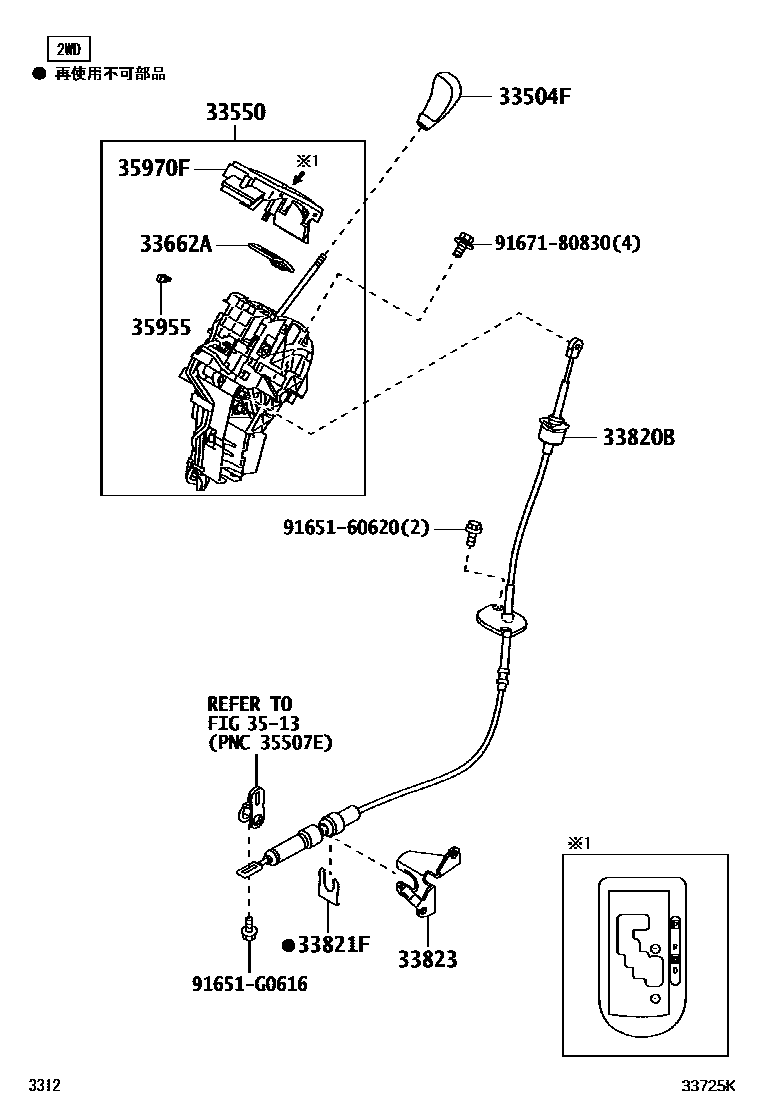

SHIFT LEVER & RETAINER for Toyota PASSO SETTE
This section contains 14 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota PASSO SETTE. Key components include: KNOB SUB-ASSY, SHIFT LEVER, FLOOR SHIFT ASSY, TRANSMISSION, CUSHION, SHIFT LEVER GUIDE, CABLE ASSY, TRANSMISSION CONTROL, CLAMP, NO.2 (FOR TRANSMISSION CONTROL CABLE).
