Toyota PASSO SETTE — REAR FOG LAMP

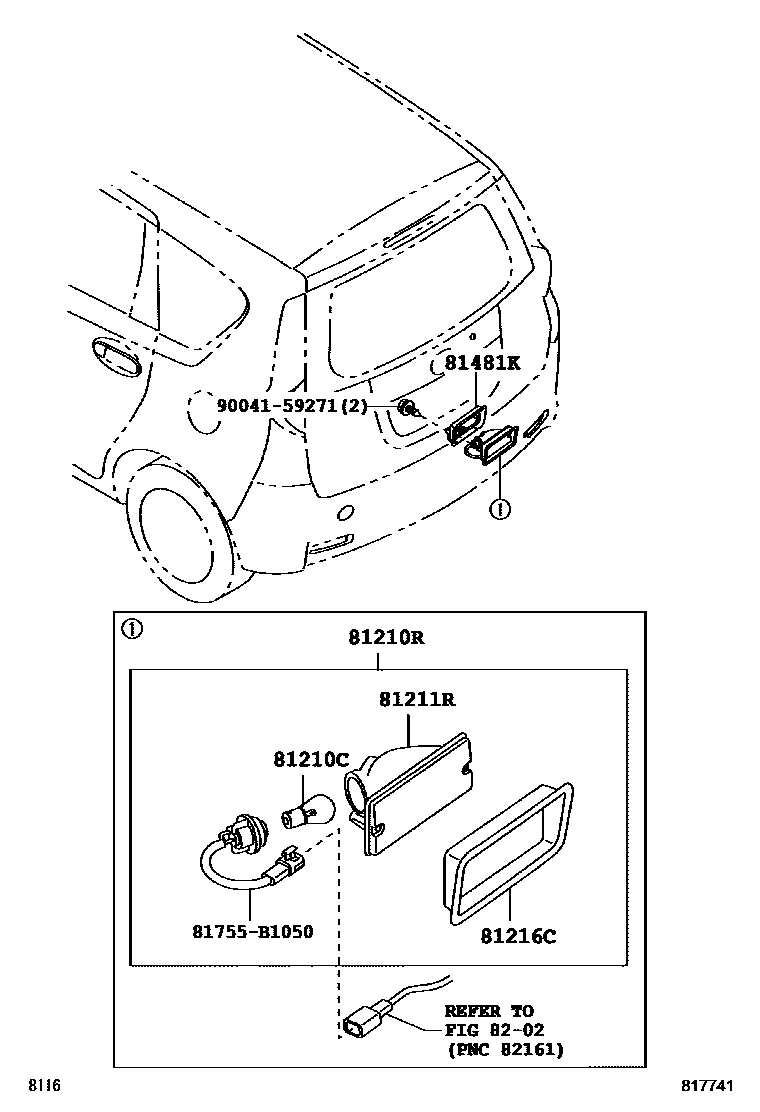

Parts diagram

81210CBULB, REAR FOG LAMP

main99132-11210i200812-201203

81210RLAMP ASSY, REAR FOG

main81480-B1040i200812-201203

main81480-B1050i200812-201203

81211RLENS, REAR FOG LAMP

main81211-B1030i200812

main81211-B1040i200812

81216CRIM, REAR FOG LAMP, RH, NO.1

main81216-B1060i200812

main81216-B1070i200812

81481KBRACKET, REAR FOG LAMP

main81481-B1120i200812

main81481-B1140i200812

8202WIRING & CLAMP

→ Go to FIG 82-02

81755B1050SOCKET & WIRE SUB-ASSY, REAR SIDE MARKER LAMP

main81755-B1050

9004159271

main90041-59271

8 parts on this diagram · 1 diagram in section

REAR FOG LAMP for Toyota PASSO SETTE

This section contains 8 genuine Toyota parts for the REAR FOG LAMP system of the Toyota PASSO SETTE. Key components include: BULB, REAR FOG LAMP, LAMP ASSY, REAR FOG, LENS, REAR FOG LAMP, RIM, REAR FOG LAMP, RH, NO.1, BRACKET, REAR FOG LAMP.
