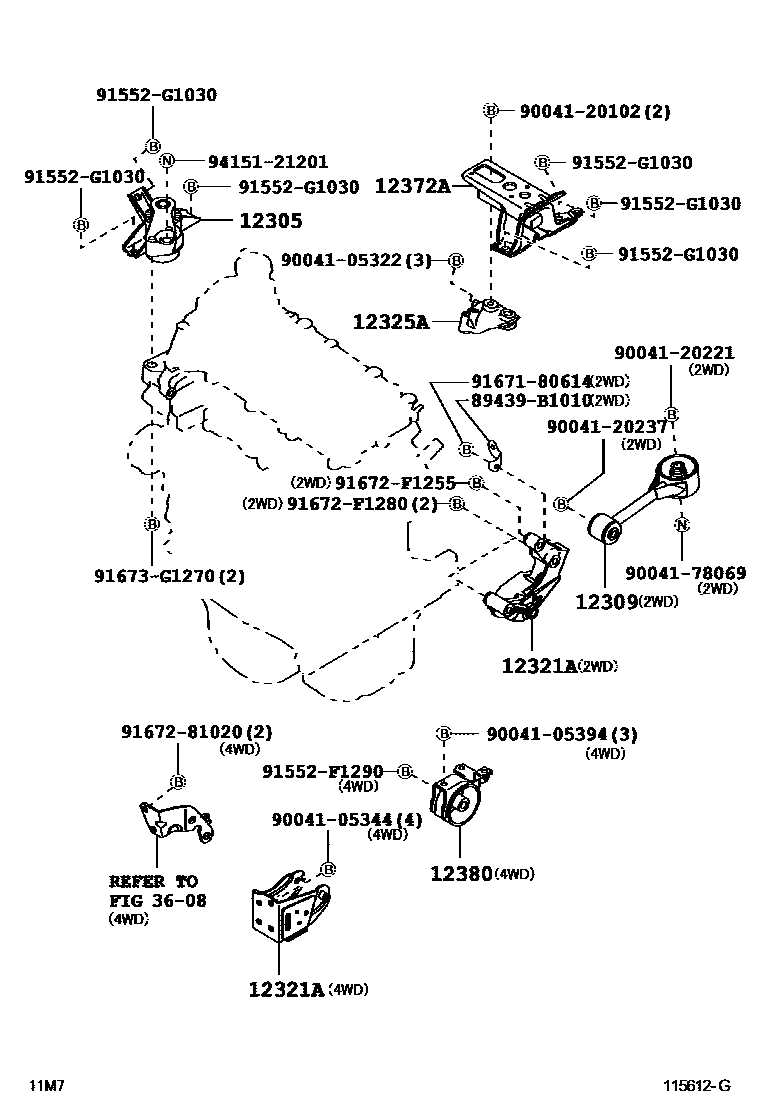

Toyota PASSO SETTE — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12309ROD SUB-ASSY, ENGINE MOVING CONTROL
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12380INSULATOR ASSY, ENGINE MOUNTING, REAR
3608TRANSFER ASSEMBLY & GASKET KIT
89439B1010BRACKET, SENSOR
main89439-B1010
9004105322
main90041-05322
9004105344
main90041-05344
9004105394
main90041-05394
9004120102
main90041-20102
9004120221
main90041-20221
9004120237
main90041-20237
9004178069
main90041-78069
91552F1290
main91552-F1290
91552G1030
main91552-G1030
9167180614
main91671-80614
9167281020
main91672-81020
91672F1255
main91672-F1255
91672F1280
main91672-F1280
91673G1270
main91673-G1270
9415121201
main94151-21201
23 parts on this diagram · 1 diagram in section
MOUNTING for Toyota PASSO SETTE
This section contains 23 genuine Toyota parts for the MOUNTING system of the Toyota PASSO SETTE. Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, ROD SUB-ASSY, ENGINE MOVING CONTROL, BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE), INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE).
