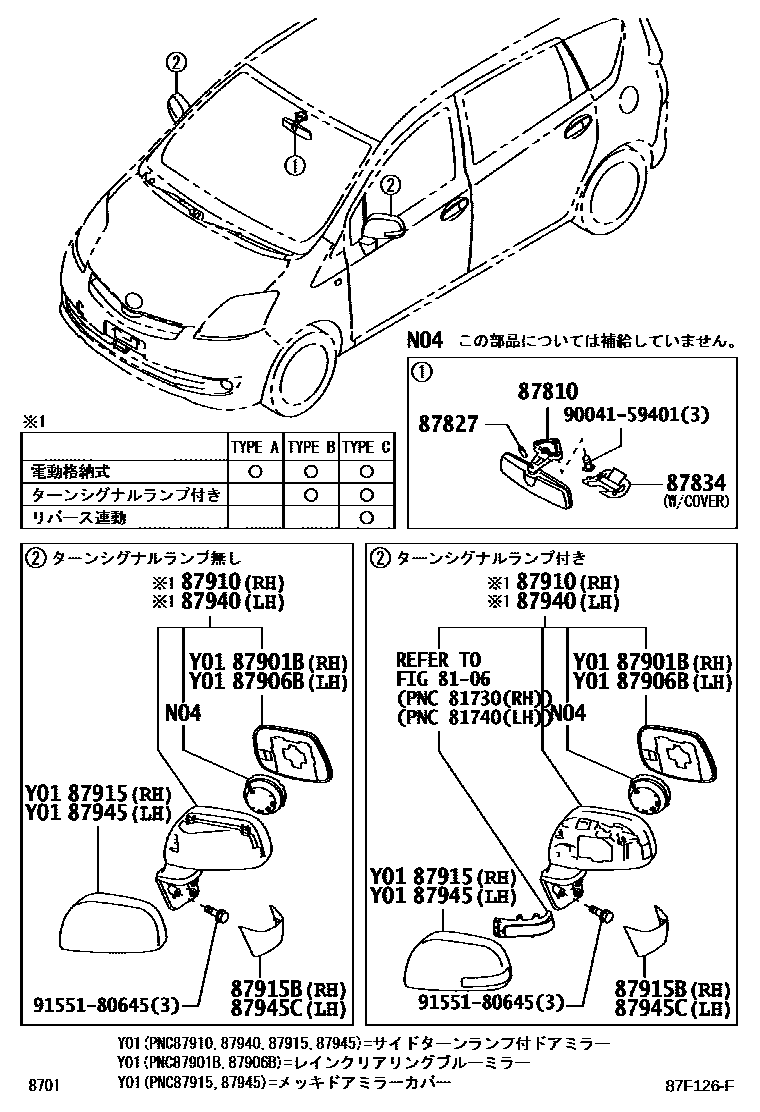

Toyota PASSO SETTE — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
BLACK,TRIM4#
87827ABSORBER, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
GREGE,TRIM4#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
87915BCOVER, OUTER MIRROR, LOWER RH
WHITE PEARL CS.,064
SILVER M.M.,1E7
BLACK MC.,209
ORANGE ME.,R44
MAROON MC.,R56
SUPER RED 5,3P0
BEIGE ME.,4T8
YELLOW ME.,Y08
AQUA M.M.,774
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
87945CCOVER, OUTER MIRROR, LOWER LH
WHITE PEARL CS.,064
SILVER M.M.,1E7
BLACK MC.,209
ORANGE ME.,R44
MAROON MC.,R56
SUPER RED 5,3P0
BEIGE ME.,4T8
YELLOW ME.,Y08
AQUA M.M.,774
9004159401
main90041-59401
9155180645
main91551-80645
14 parts on this diagram · 1 diagram in section
MIRROR for Toyota PASSO SETTE
This section contains 14 genuine Toyota parts for the MIRROR system of the Toyota PASSO SETTE. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
