Toyota PASSO SETTE — FRONT DOOR WINDOW REGULATOR & HINGE

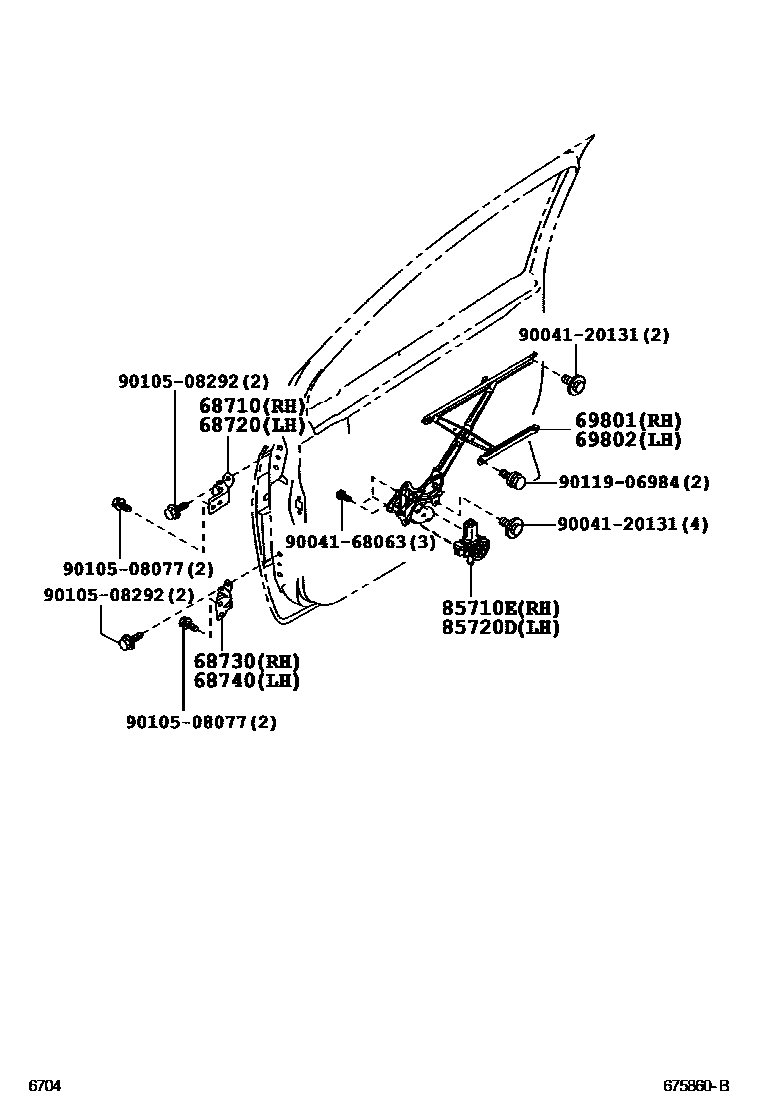

Parts diagram

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151i200812

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151i200812

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68780-97204i200812-200904

main68780-B1020i200905-201203

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68770-97204i200812-200904

main68770-B1020i200905-201203

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-B1070i200812

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-B1050i200812

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-B1010i200812-201107

main85710-B1011i201108

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-B2020i200812-201110

main85720-B2021i201111

9004120131

main90041-20131

9004168063

main90041-68063

9010508077

main90105-08077

9010508292

main90105-08292

9011906984

main90119-06984

13 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota PASSO SETTE

This section contains 13 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota PASSO SETTE. Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH.
