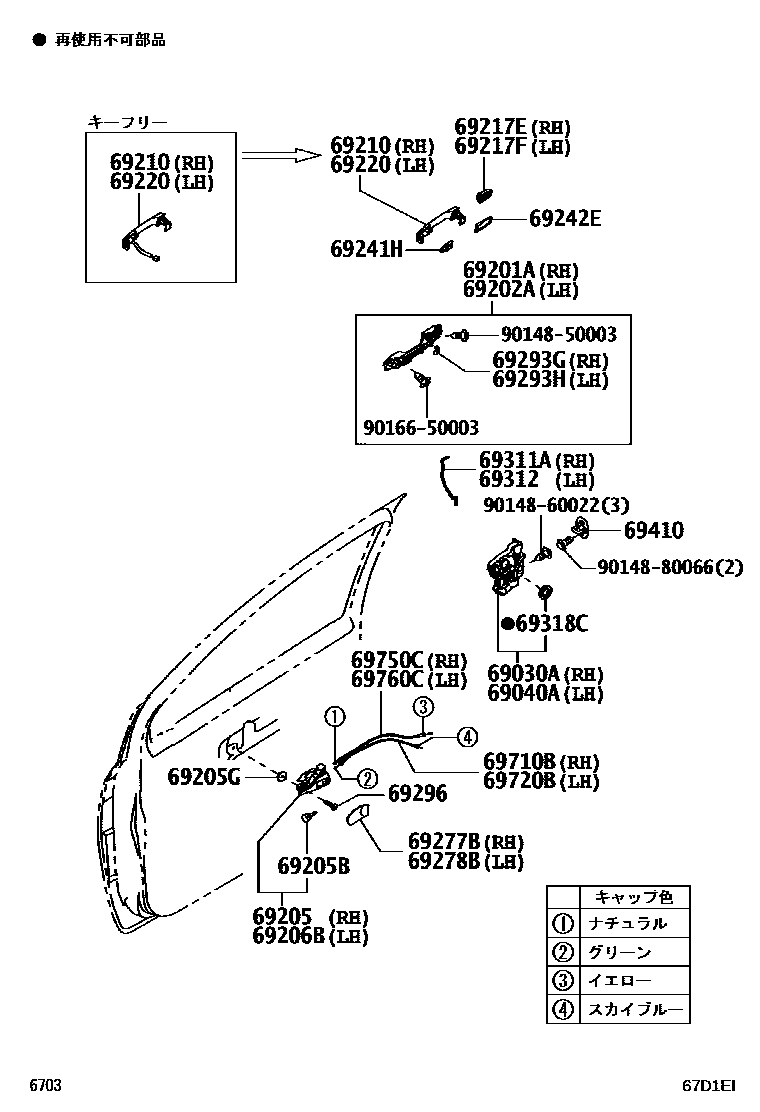

Toyota PASSO SETTE — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK. BROWN,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69205GGROMMET(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK. BROWN,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
YELLOW ME.,Y08
WHITE PEARL CS.,064
BLACK MC.,209
AQUA M.M.,774
BEIGE ME.,4T8
SILVER M.M.,1E7
SUPER RED 5,3P0
ORANGE ME.,R44
MAROON MC.,R56
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
YELLOW ME.,Y08
WHITE PEARL CS.,064
SILVER M.M.,1E7
BLACK MC.,209
SUPER RED 5,3P0
AQUA M.M.,774
BEIGE ME.,4T8
ORANGE ME.,R44
MAROON MC.,R56
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
DK. BROWN,TRIM4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
DK. BROWN,TRIM4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69296SCREW, DOOR INSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9016650003
main90166-50003
31 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota PASSO SETTE
This section contains 31 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota PASSO SETTE. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
