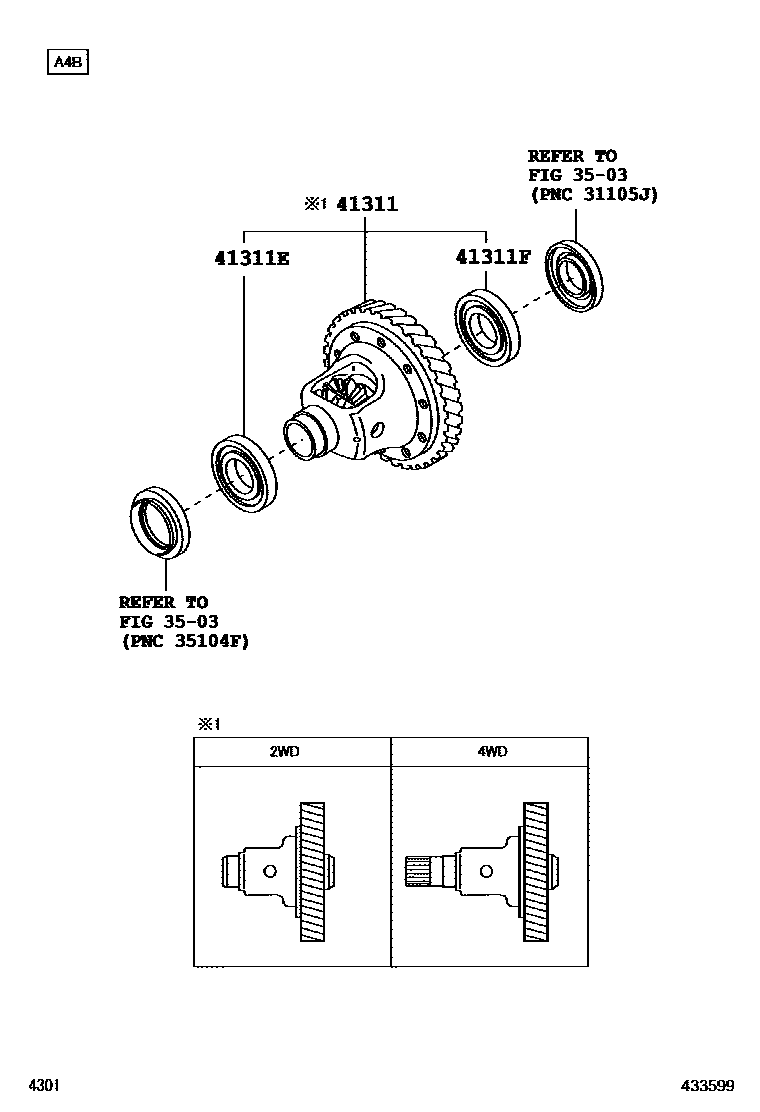

Toyota PASSO SETTE — FRONT AXLE HOUSING & DIFFERENTIAL

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

41311CASE, FRONT DIFFERENTIAL

main41100-97205i200812-201203

main41100-97208i200812-201203

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90043-63276i200812

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90043-63304i200812

4 parts on this diagram · 1 diagram in section

FRONT AXLE HOUSING & DIFFERENTIAL for Toyota PASSO SETTE

This section contains 4 genuine Toyota parts for the FRONT AXLE HOUSING & DIFFERENTIAL system of the Toyota PASSO SETTE. Key components include: TRANSMISSION CASE & OIL PAN (ATM), CASE, FRONT DIFFERENTIAL, BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT), BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR).
