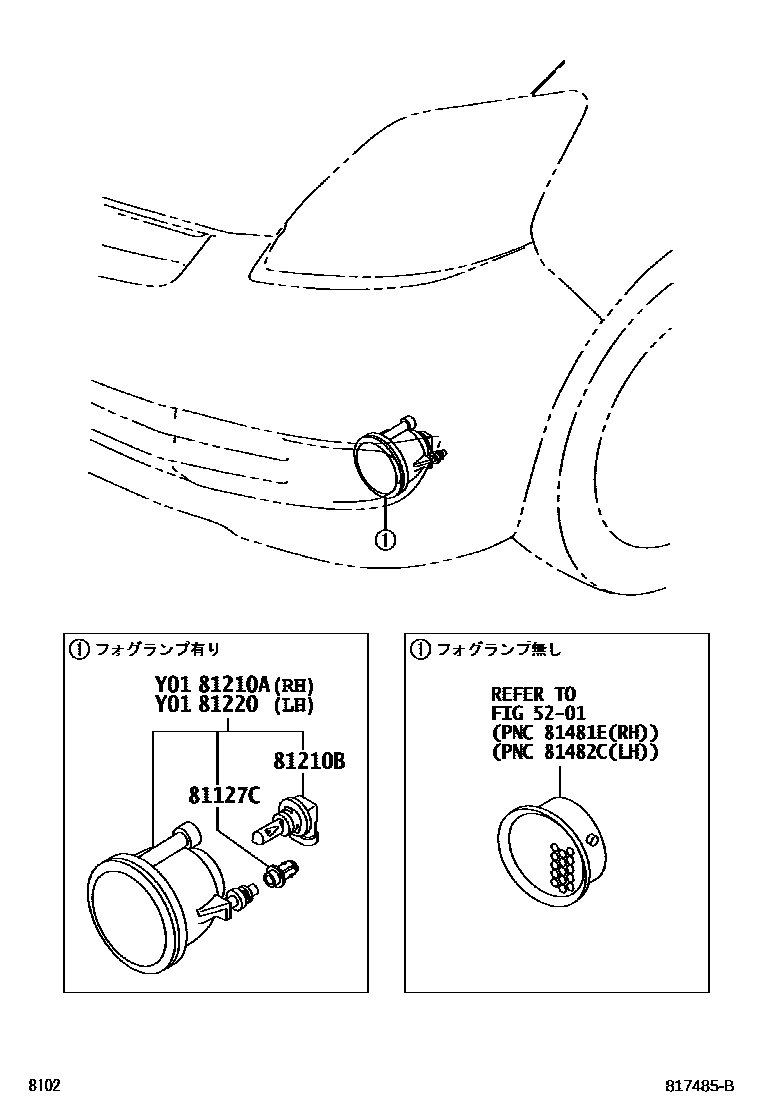

Toyota PASSO SETTE — FOG LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81127CBEARING FOG LAMP

main81127-87401×2i200812-201203

81210ALAMP ASSY, FOG, RH

main81210-97229i200812

81210BBULB, FOG LAMP

main90049-51154×2i200812

81220LAMP ASSY, FOG, LH

main81210-97229i200812

5 parts on this diagram · 1 diagram in section

FOG LAMP for Toyota PASSO SETTE

This section contains 5 genuine Toyota parts for the FOG LAMP system of the Toyota PASSO SETTE. Key components include: FRONT BUMPER & BUMPER STAY, BEARING FOG LAMP, LAMP ASSY, FOG, RH, BULB, FOG LAMP, LAMP ASSY, FOG, LH.
