Toyota PASSO SETTE — ENGINE OIL PUMP

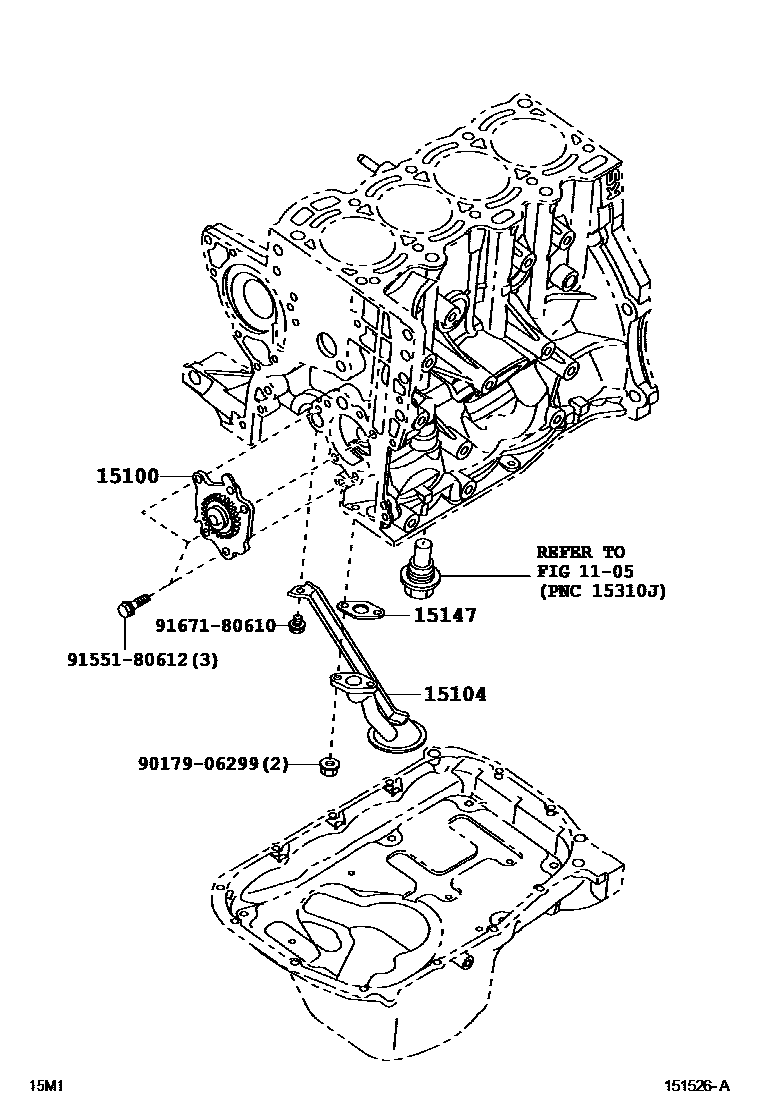

Parts diagram

1105CYLINDER BLOCK

→ Go to FIG 11-05

15100PUMP ASSY, OIL

main15100-B1010i200812

15104STRAINER SUB-ASSY, OIL

main15140-97401i200812

15147GASKET, OIL STRAINER

main15147-97401i200812

9017906299

main90179-06299

9155180612

main91551-80612

9167180610

main91671-80610

7 parts on this diagram · 1 diagram in section

ENGINE OIL PUMP for Toyota PASSO SETTE

This section contains 7 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota PASSO SETTE. Key components include: CYLINDER BLOCK, PUMP ASSY, OIL, STRAINER SUB-ASSY, OIL, GASKET, OIL STRAINER.
