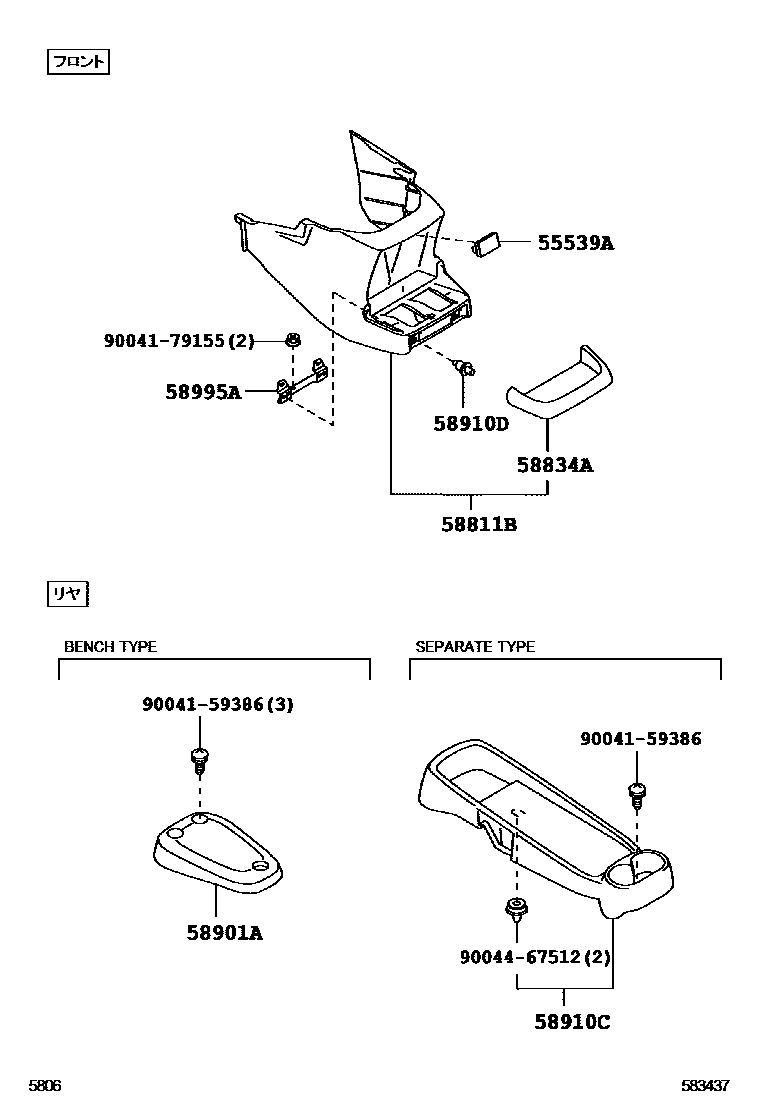

Toyota PASSO SETTE — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-B2030-B2iM502,512200812

DK.GRAY,TRIM4#

58811BBOX, CONSOLE

main58801-B1050-E0iM502,512200812

GREGE,TRIM4#

58834ACOVER, CONSOLE, LOWER

main58834-B1020-E0iM502,512200812

GREGE,TRIM4#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58911-B1040-B0iM502,512..G200812

DK.GRAY,TRIM4#

58910CBOX ASSY, CONSOLE, REAR

main58901-B1010-B0iM502,512..S,SC,X200812

DK.GRAY,TRIM4#

58910DCLIP(FOR CONSOLE BOX)

main90467-07066-L2×2iM502,512200812

GREGE,TRIM4#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-B1020iM502,512200812

9004159386

main90041-59386

9004179155

main90041-79155

9004467512

main90044-67512

10 parts on this diagram · 1 diagram in section
