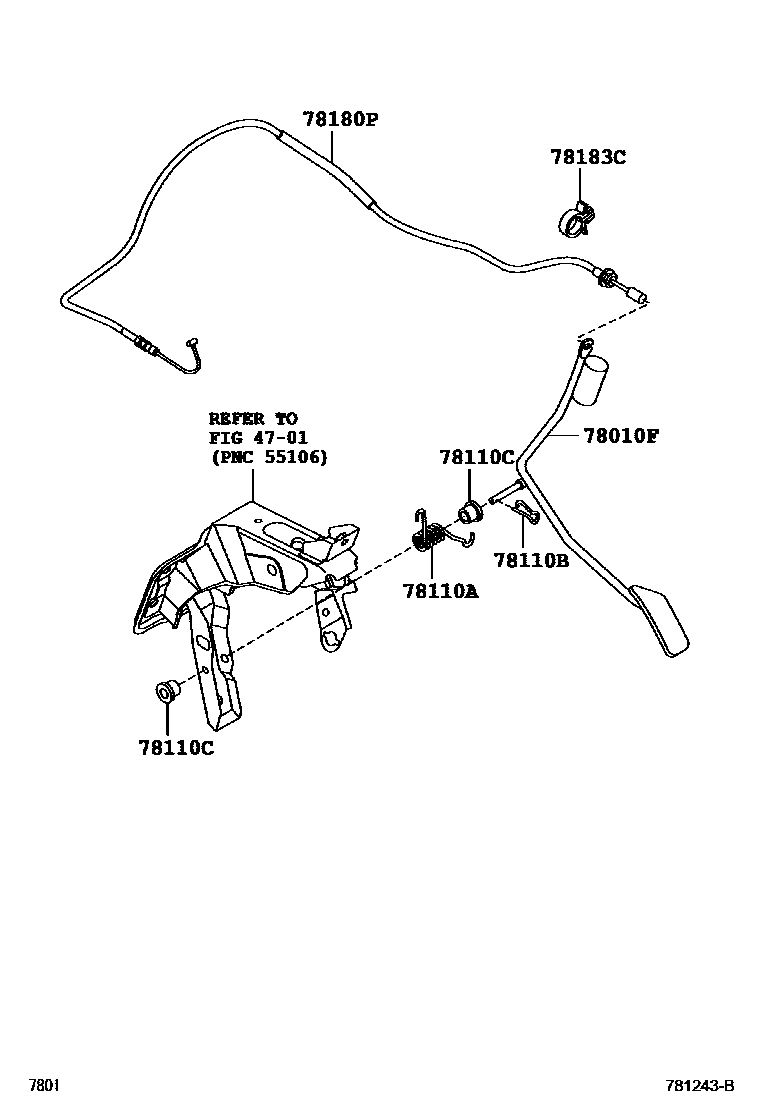

Toyota PASSO SETTE — ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78010FPEDAL ASSY, ACCELERATOR

main78101-B1060i200812-201203

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main78214-B1011i200812

78110BCLIP, ACCELERATOR BELLCRANK

main90044-68207i200812

78110CBUSH (FOR ACCELERATOR PEDAL ROD)

main90043-86134×2i200812

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-B1070i200812

78183CCLAMP, ACCELERATOR CONTROL CABLE

main78183-B2020i200812

7 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota PASSO SETTE

This section contains 7 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota PASSO SETTE. Key components include: BRAKE PEDAL & BRACKET, PEDAL ASSY, ACCELERATOR, SPRING (FOR ACCELERATOR PEDAL ROD), CLIP, ACCELERATOR BELLCRANK, BUSH (FOR ACCELERATOR PEDAL ROD).
