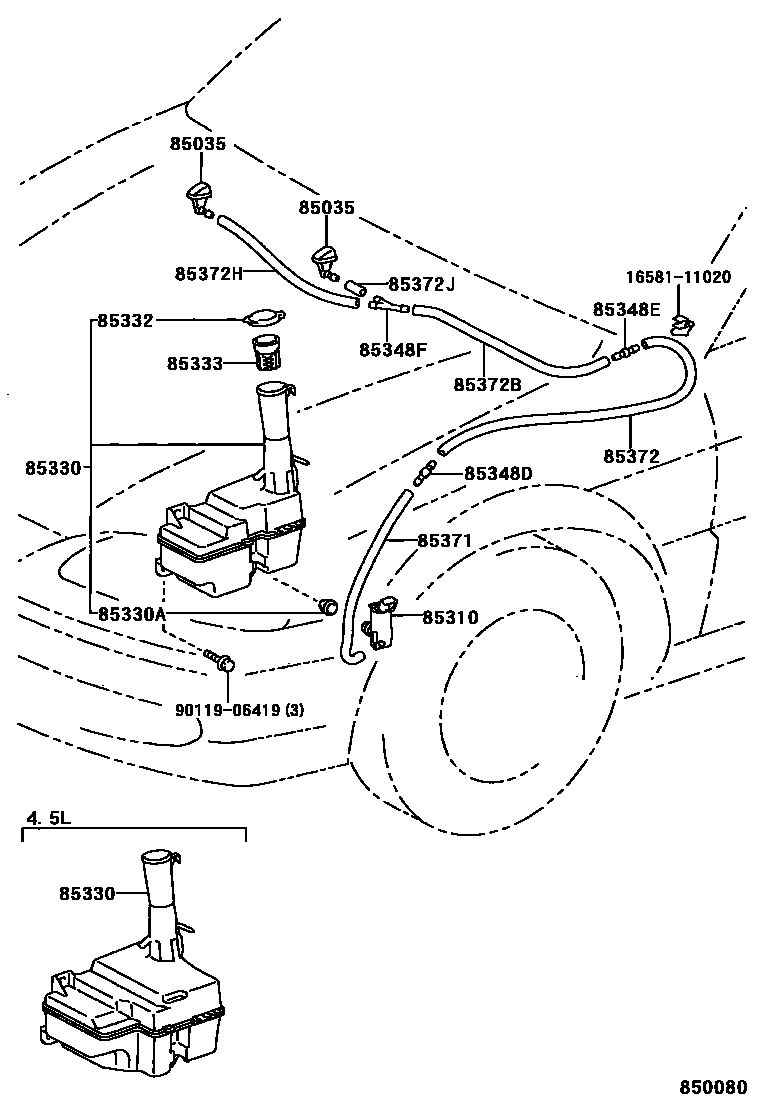

Toyota PASEO — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-16100×2i199508

main85381-16110×2i199508

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20190i199508-199608

4.5L:REFER TO ILLUSTRATION

main85310-20210i199508-199608

main85330-10280i199608

main85330-33020i199608

4.5L:REFER TO ILLUSTRATION

85330JAR ASSY, WINDSHIELD WASHER

main85315-16070i199508

main85315-16110i199508

4.5L:REFER TO ILLUSTRATION

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199508

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i199508-199608

main85316-33050i199608

85333FILTER, WINDSHIELD WASHER JAR

main85333-12470i199508

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85334-22480i199508

4.5L:REFER TO ILLUSTRATION

main85349-89122i199508

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85334-22470i199508

4.5L:REFER TO ILLUSTRATION

main85349-89122i199508

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85348-14390i199508

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33075i199508

L=1100(*H,L=380),4.5L:REFER TO ILLUSTRATION

main90099-33080i199508

L=1450(*H,L=380)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33075i199508

L=1100(*H,L=600),4.5L:REFER TO ILLUSTRATION

main90446-07001i199508

L=1800(*H,L=600)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080i199508

L=1450(*H,L=590)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i199508

L=1450(*H,L=530)

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i199508

L=1450(*H,L=40)

1658111020CLAMP, HOSE(FOR WATER HOSE)

main16581-11020

9011906419

main90119-06419

16 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota PASEO

This section contains 16 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PASEO. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
