Toyota PASEO — WINDSHIELD WASHER

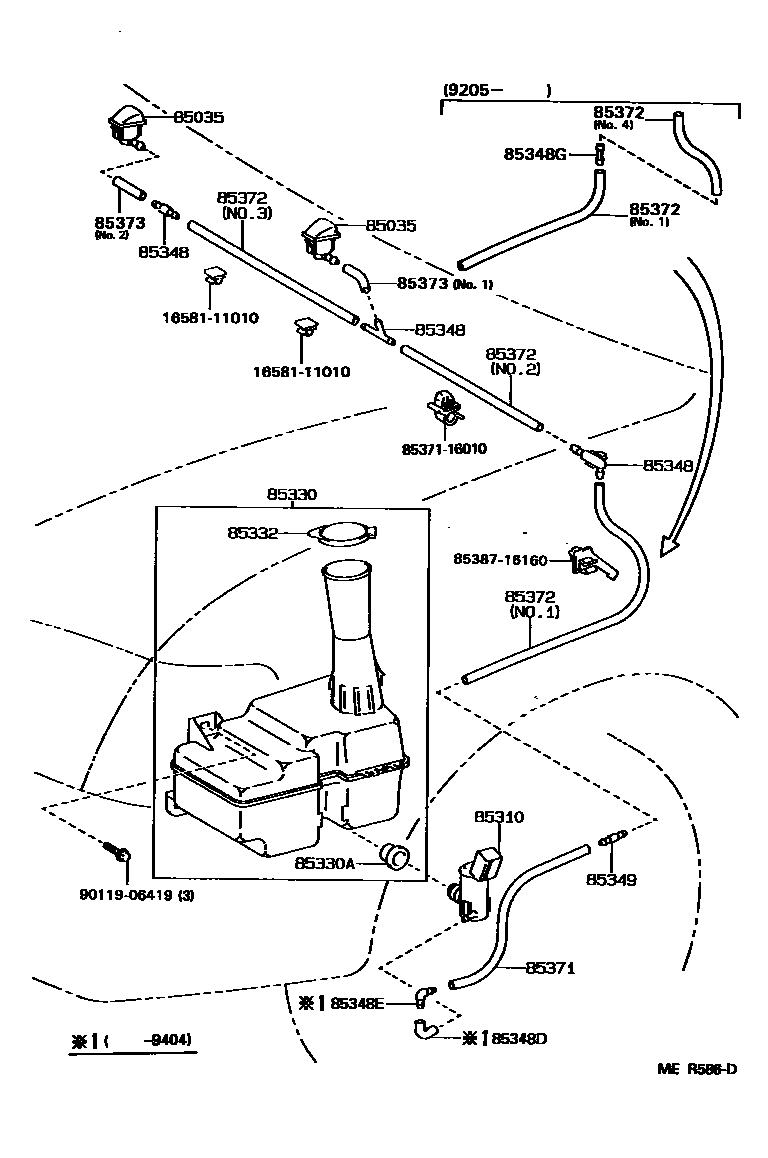

Parts diagram
85035NOZZLE SUB-ASSY, WASHER
main85381-16050×2i199104-199508
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-20190i199208-199508
COLD SPEC
main85310-20210i199208-199401
CHILE SPEC
main85330-16170i199104-199208
COLD SPEC
85330JAR ASSY, WINDSHIELD WASHER
main85315-16070i199104-199508
main85315-16110i199104-199508
COLD SPEC
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i199104-199208
main90099-32103i199104-199208
COLD SPEC
85332CAP, WINDSHIELD WASHER JAR
main85316-10190i199104-199309
main85316-16070i199309-199508
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85348-14390i199104-199508
3 WAY
main85375-10260i199208-199401
CHILE SPEC,2 WAY
main85375-16160i199104-199508
L JOINT
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85355-14481i199104-199404
main85355-32110i199104-199404
COLD SPEC
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
main85355-14040i199104-199404
COLD SPEC
main85355-20200i199401-199404
CHILE SPEC OR BRAZIL SPEC
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
main85376-50040i199205-199508
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
main85334-22470i199104-199508
COLD SPEC,TO NOZZLE; TO NOZZLE
main85334-22480i199104-199508
COLD SPEC,TO JAR; TO JAR
main85349-89122i199401-199508
CHILE SPEC OR BRAZIL SPEC
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33075i199203-199404
L=1100; L=1100,COLD SPEC
main90099-33080i199404-199508
L=1450; L=1450,CHILE SPEC OR BRAZIL SPEC
main90099-33299i199104-199208
L=1000
main90099-33334i199104-199203
L=2000; L=2000,COLD SPEC
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90099-33071i199104-199508
L=1100(*H,L=600),COLD SPEC,NO.1; L=1100(*H,L=600),NO.1
main90099-33080i199208-199508
L=1450,COLD SPEC,NO.2; L=1450,NO.2; L=1450,NO.4
main90446-06013i199401-199508
L=1000,CHILE SPEC OR BRAZIL SPEC,NO.3,NO.2
main90446-07001i199205-199508
L=1800,NO.1
main90446-07012i199104-199205
L=1800(*H,L=900),NO.1
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33080i199104-199508
L=1450,COLD SPEC,NO.1; L=1450,NO.1
main90099-33299i199104-199508
L=1000,COLD SPEC,NO.2; L=1000,NO.2
1658111010CLAMP, HOSE(FOR WATER HOSE)
main16581-11010
8537116010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-16010
8538716160CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-16160
9011906419
main90119-06419

17 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota PASEO

This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PASEO. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
