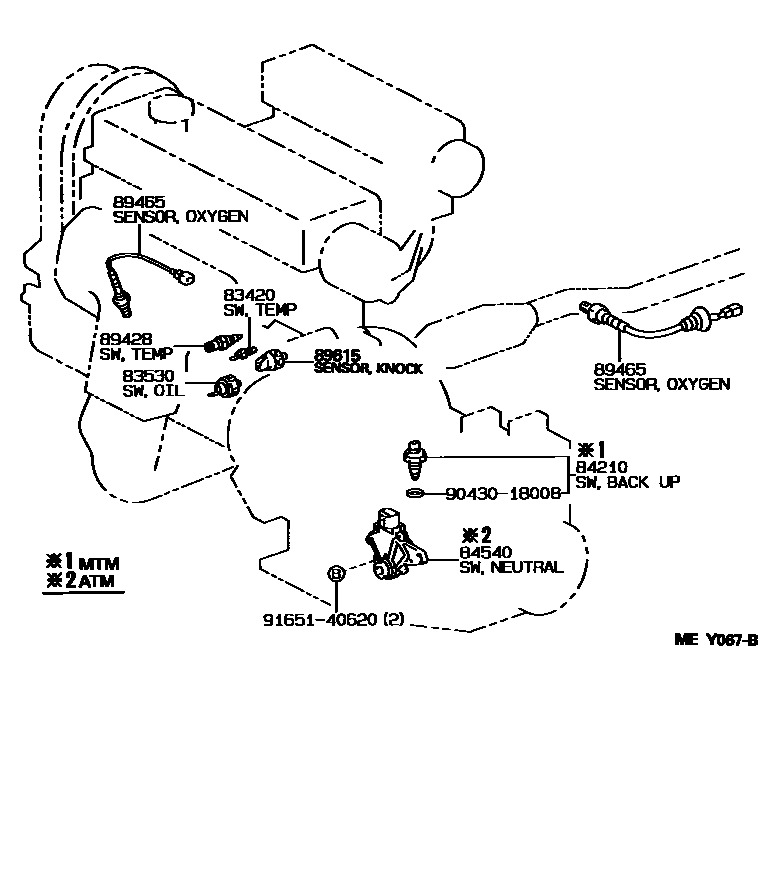

Toyota PASEO — SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE ROOM 0003 1INSTRUMENT PANEL,DOOR SWITCH 0005 1INSTRUMENT PANEL,DOOR SWITCH 0007 1W/O(AIR BAG)IGNITION,TURN SWI0008 1W(AIR BAG)IGNITION,TURN SWITC0010 1W(AIR BAG)IGNITION,TURN SWITC0012 1INSTRUMENT PANEL RELAY & SWIT0013 1DOOR,FLOOR,LUGGAGE SWITCH

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040iEL54199508-199705

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iEL54199803

main83530-30090iEL54199508-199803

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iEL54..MTM199508

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16050iEL54..ATM199508

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iEL54199508

89465SENSOR, OXYGEN

main89465-16050iEL54199508-199608

EXHAUST MANIFOLD

main89465-16060iEL54199508-199608

EXHAUST PIPE

main89465-16110iEL54199608

EXHAUST MANIFOLD

main89465-16120iEL54199608

EXHAUST PIPE

89615SENSOR, KNOCK CONTROL

main89615-22030iEL54199508

MATSUSHITA

main89615-22040iEL54199508

NIPPONDENSO

9043018008

main90430-18008

9165140620

main91651-40620

9 parts on this diagram · 9 diagrams in section
