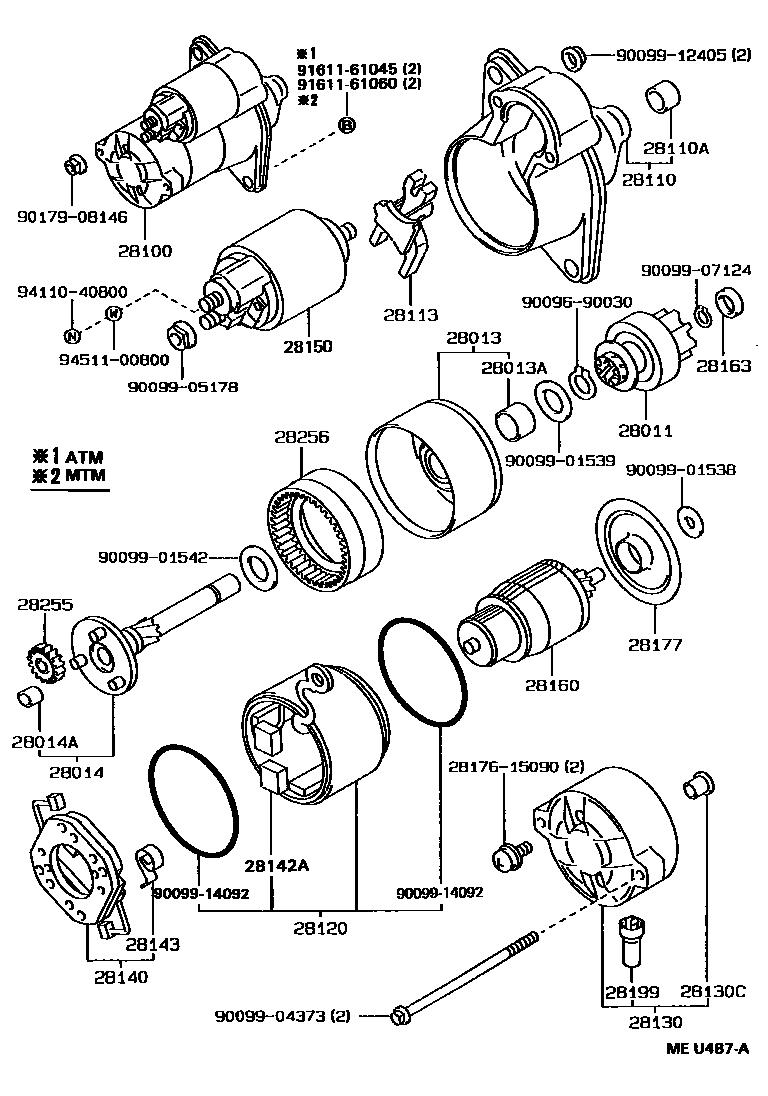

Toyota PASEO — STARTER
28011CLUTCH SUB-ASSY, STARTER
COLD SPEC
CHILE SPEC
28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1
CHILE SPEC
28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
CHILE SPEC
28014SHAFT SUB-ASSY, PLANET CARRIER
CHILE SPEC
28014ABUSH OR BEARING, PLANET CARRIER SHAFT
CHILE SPEC
28100STARTER ASSY
12V 1.0KW; 12V 1.0KW,COLD SPEC
12V 1.0KW; 12V 1.0KW,COLD SPEC
12V 0.8KW,CHILE SPEC OR BRAZIL SPEC
12V 0.8KW,CHILE SPEC
12V 1.0KW; 12V 1.0KW,COLD SPEC
12V 1.0KW; 12V 1.0KW,COLD SPEC
28110HOUSING ASSY, STARTER DRIVE
COLD SPEC
COLD SPEC
CHILE SPEC
28110ABEARING(FOR STARTER HOUSING)
CHILE SPEC
28113LEVER, STARTER PINION DRIVE
28120YOKE ASSY, STARTER
COLD SPEC
28130FRAME ASSY, STARTER COMMUTATOR END
COLD SPEC
CHILE SPEC OR BRAZIL SPEC
28130CBEARING, STARTER FLANGE
CHILE SPEC
28140HOLDER ASSY, STARTER BRUSH
COLD SPEC
CHILE SPEC OR BRAZIL SPEC
28142ASTARTER KIT
28143SPRING, STARTER BRUSH
CHILE SPEC
COLD SPEC
28150SWITCH ASSY, MAGNET STARTER
CHILE SPEC
COLD SPEC
COLD SPEC
28160ARMATURE ASSY, STARTER
COLD SPEC
COLD SPEC
28163NUT OR COLLAR, PINION STOP, STARTER
CHILE SPEC
28177PLATE(FOR STARTER ARMATURE)
CHILE SPEC
28199COVER, STARTER
CHILE SPEC
28255GEAR, PLANET
CHILE SPEC
28256GEAR, STARTER INTERNAL
CHILE SPEC
2817615090SCREW, STARTER
main28176-15090
9009690030
main90096-90030
9009901538
main90099-01538
9009901539
main90099-01539
9009901542
main90099-01542
9009904373
main90099-04373
9009905178
main90099-05178
9009907124
main90099-07124
9009912405
main90099-12405
9009914092
main90099-14092
9017908146
main90179-08146
9161161045
main91611-61045
9161161060
main91611-61060
9411040800
main94110-40800
9451100800
main94511-00800
37 parts on this diagram · 2 diagrams in section
STARTER for Toyota PASEO
This section contains 55 genuine Toyota parts for the STARTER system of the Toyota PASEO. Key components include: CLUTCH SUB-ASSY, STARTER, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1, BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2, SHAFT SUB-ASSY, PLANET CARRIER, BUSH OR BEARING, PLANET CARRIER SHAFT.
