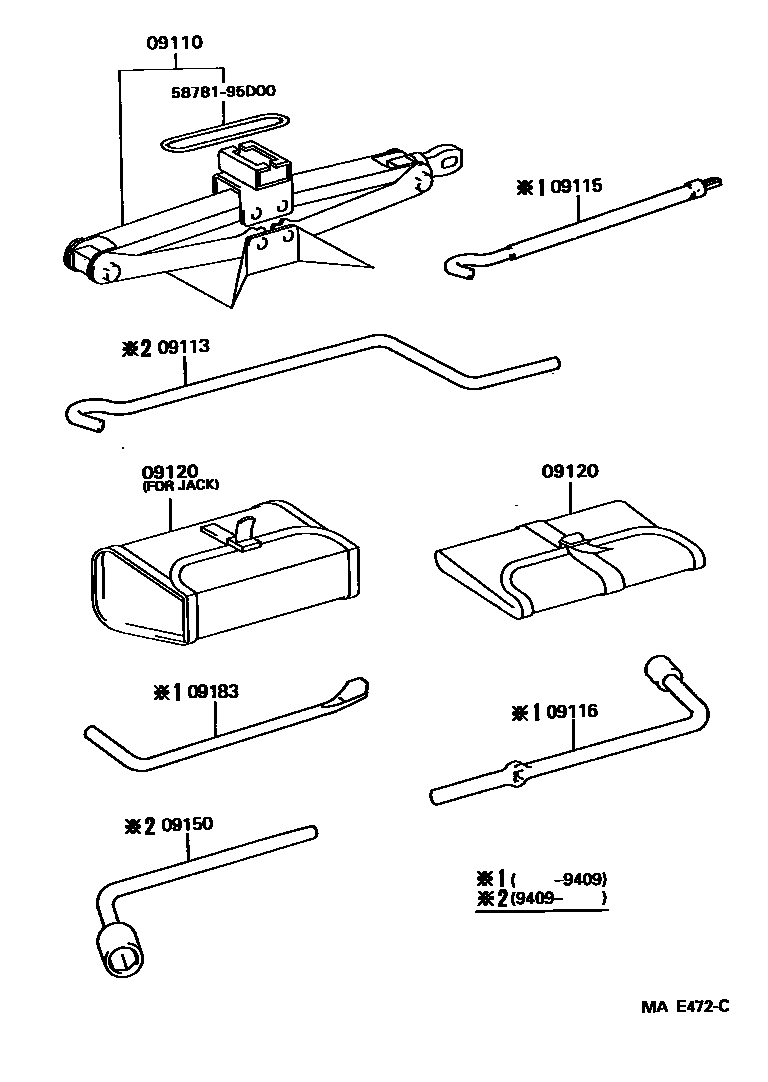

Toyota PASEO — STANDARD TOOL

09110JACK ASSY

main09111-12100i199401-199508

main09111-16020i199104-199401

09113HANDLE, JACK

main09113-20030i199409-199508

09115ROD SUB-ASSY, JACK HANDLE

main09115-16030i199104-199409

09116LEVER, JACK HANDLE

main09116-16010i199104-199409

09120BAG, TOOL

main09120-18010i199104-199208

FOR JACK

main09120-22030i199402-199409

main09120-32010i199104-199402

09150WRENCH, HUB NUT BOX

main09150-40010i199409-199508

09183WRENCH, WHEEL CAP

main09183-00010i199104-199409

5878195D00BAND, TOOL BAG

main58781-95D00

8 parts on this diagram · 1 diagram in section

STANDARD TOOL for Toyota PASEO

This section contains 8 genuine Toyota parts for the STANDARD TOOL system of the Toyota PASEO. Key components include: JACK ASSY, HANDLE, JACK, ROD SUB-ASSY, JACK HANDLE, LEVER, JACK HANDLE, BAG, TOOL.
