Toyota PASEO — MIRROR

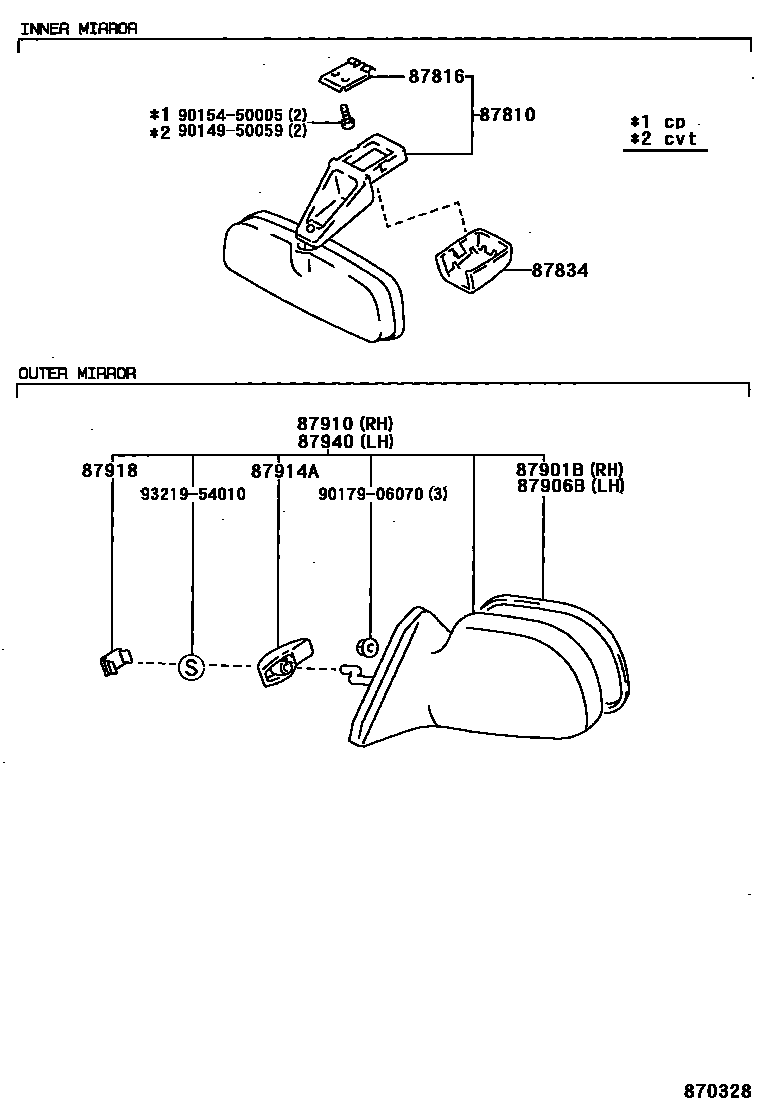

Parts diagram

87810MIRROR ASSY, INNER REAR VIEW

main87810-16060-B0i199508

LT.BLUISH GRAY,TRIM1#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030i199508

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-12030-B2i199610

SHADOW GRAY,TRIM1#

main87834-16010-B0i199508

LT.BLUISH GRAY,TRIM1#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-16510i199508

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-16550i199508

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-16730i199508-199601

main87910-16731i199601-199608

main87910-16870i199608

87914ACOVER, OUTER MIRROR KNOB

main87914-16020×2i199608

87918KNOB, CONTROL OUTER MIRROR

main87918-16010×2i199508-199608

main87918-16020×2i199608

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-16870i199508-199601

main87940-16871i199601-199608

main87940-1G030i199608

9014950059

main90149-50059

9015450005

main90154-50005

9017906070

main90179-06070

9321954010

main93219-54010

13 parts on this diagram · 2 diagrams in section

MIRROR for Toyota PASEO

This section contains 13 genuine Toyota parts for the MIRROR system of the Toyota PASEO. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH.
