Toyota PASEO — MIRROR

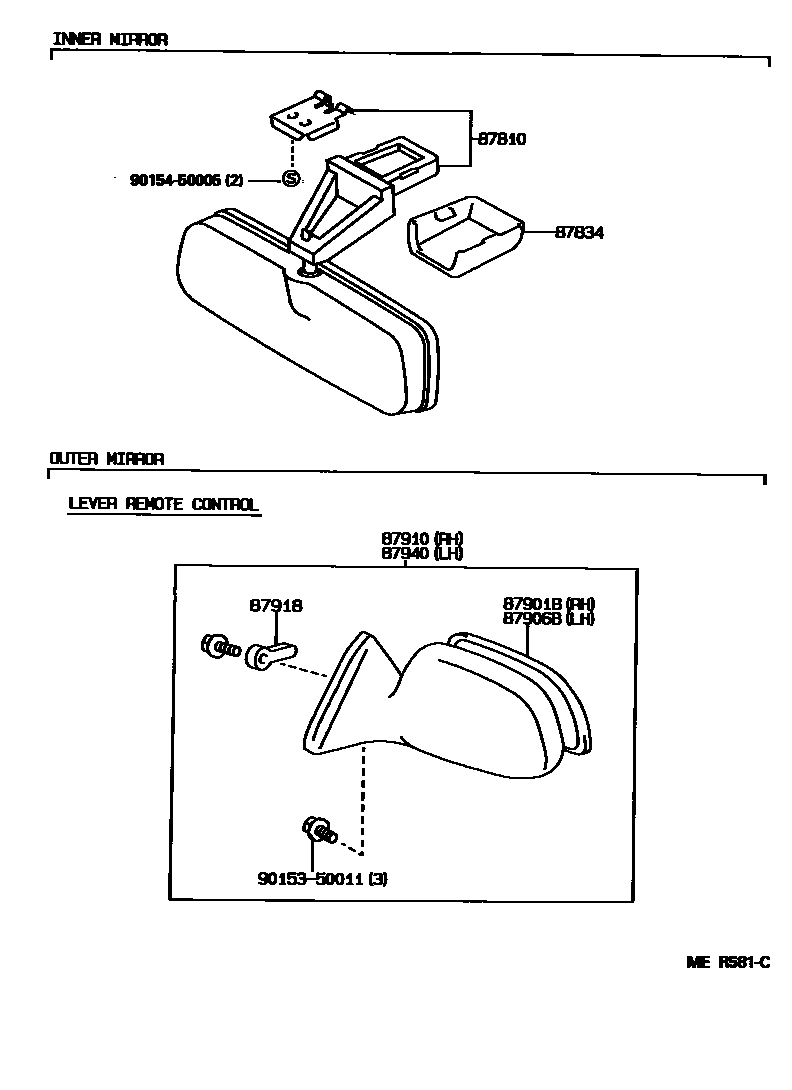

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-16030-03i199104-199208
GRAY,TRIM2#
main87810-16030-04i199104-199208
GRAISH BLUE,TRIM8#
main87810-16030-S3i199208-199508
LI.GRAY,TRIM2#
main87810-16030-W7i199208-199409
LI.BLUE,TRIM8#
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87834-20110-03i199104-199208
SHADOW GRAY,TRIM2#
main87834-20110-14i199104-199208
GRAISH BLUE,TRIM8#
main87834-20110-S3i199208-199508
LI.GRAY,TRIM2#
main87834-20110-W7i199208-199409
LI.BLUE,TRIM8#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87931-16660i199104-199508
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87961-16710i199104-199508
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-16660i199104-199508
87918KNOB, CONTROL OUTER MIRROR
main87918-16010×2i199104-199508
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-16710i199104-199508
9015350011
main90153-50011
9015450005
main90154-50005

9 parts on this diagram · 1 diagram in section

MIRROR for Toyota PASEO

This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota PASEO. Key components include: MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH.
