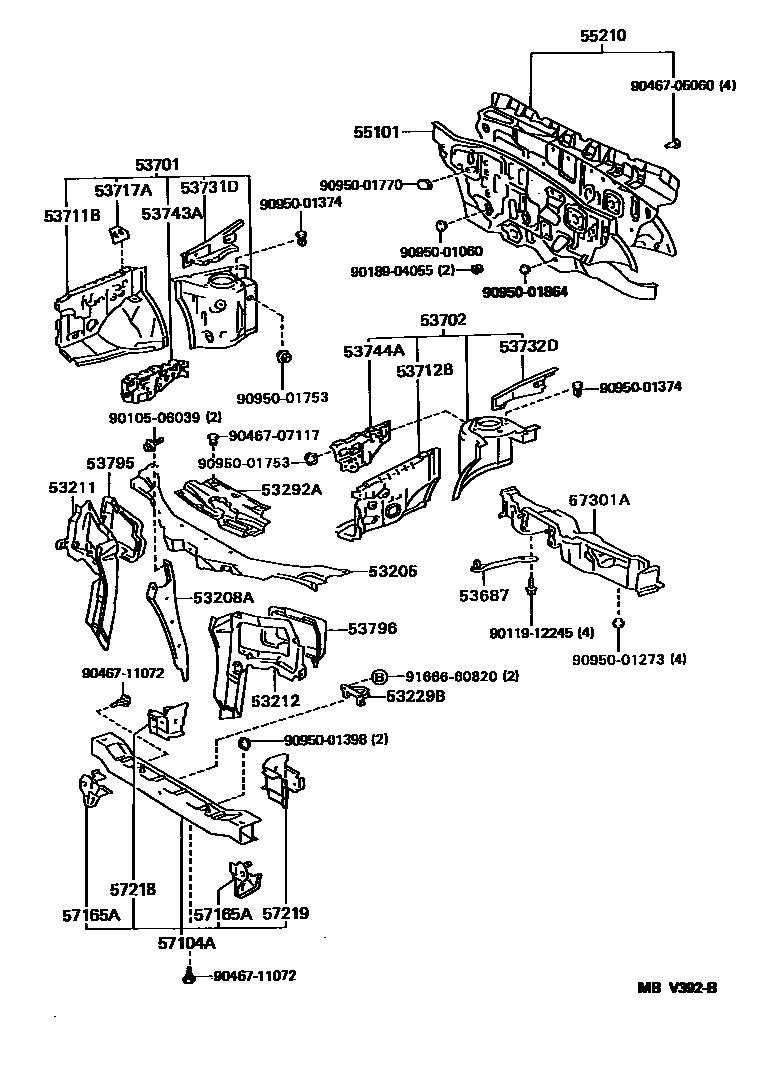

Toyota PASEO — FRONT FENDER APRON & DASH PANEL
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53229BBRACKET, RADIATOR MOUNTING, LOWER NO.2
53292ASEAL, RADIATOR SUPPORT, UPPER
53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53717APLATE, FENDER APRON
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH
53744AREINFORCEMENT, FRONT FENDER APRON, FRONT LH
53795COVER, HEADLAMP WIRE HARNESS HOLE, RH
53796COVER, HEADLAMP WIRE HARNESS HOLE, LH
55101PANEL SUB-ASSY, DASH
CALIFORNIA SPEC
CALIFORNIA SPEC
57104AMEMBER SUB-ASSY, FRONT CROSS
57165AREINFORCEMENT, FRONT CROSSMEMBER, NO.2
RH
LH
57218GUSSET, FRONT SIDE MEMBER, NO.1
57219GUSSET, FRONT SIDE MEMBER, NO.2
57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
CALIFORNIA SPEC
9010506039
main90105-06039
9011912245
main90119-12245
9018904055
main90189-04055
9046705060
main90467-05060
9046707117
main90467-07117
9046711072
main90467-11072
9095001060
main90950-01060
9095001273
main90950-01273
9095001374
main90950-01374
9095001398
main90950-01398
9095001753
main90950-01753
9095001770
main90950-01770
9095001864
main90950-01864
9166660820
main91666-60820
39 parts on this diagram · 1 diagram in section
FRONT FENDER APRON & DASH PANEL for Toyota PASEO
This section contains 39 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota PASEO. Key components include: SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT SUB-ASSY, HOOD LOCK, SUPPORT, RADIATOR, RH, SUPPORT, RADIATOR, LH, BRACKET, RADIATOR MOUNTING, LOWER NO.2.
