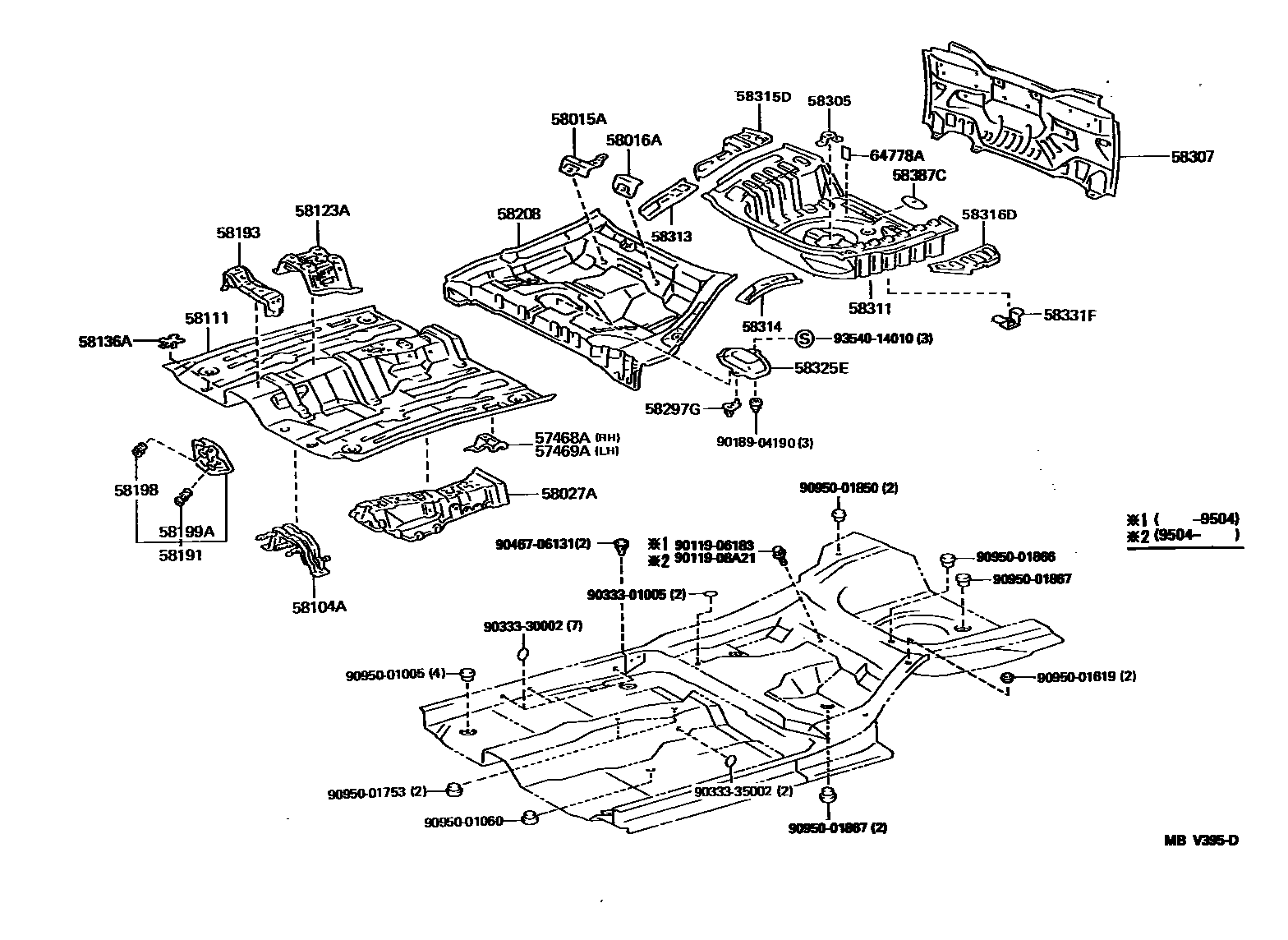

Toyota PASEO — FLOOR PAN & LOWER BACK PANEL
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58136ACOVER, FRONT FLOOR SERVICE HOLE
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58198CLIP, FOOTREST
58199ACLIP, FOOTREST, NO.2
58297GRETAINER, FLOOR CLAMP
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58387CPLATE, REAR FLOOR FINISH
64778APROTECTOR, SPARE WHEEL
9011906183
main90119-06183
9011908A21
main90119-08A21
9018904190
main90189-04190
9033301005
main90333-01005
9033330002
main90333-30002
9033335002
main90333-35002
9046706131
main90467-06131
9095001005
main90950-01005
9095001060
main90950-01060
9095001619
main90950-01619
9095001753
main90950-01753
9095001850
main90950-01850
9095001866
main90950-01866
9095001867
main90950-01867
9354014010
main93540-14010
41 parts on this diagram · 1 diagram in section
FLOOR PAN & LOWER BACK PANEL for Toyota PASEO
This section contains 41 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota PASEO. Key components include: BRACKET, FRONT SEAT, OUTSIDE, REAR RH, BRACKET, FRONT SEAT, OUTSIDE, REAR LH, REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH, REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH, REINFORCE SUB-ASSY, SEAT BELT ANCHOR.
