Toyota PASEO — ACCELERATOR LINK

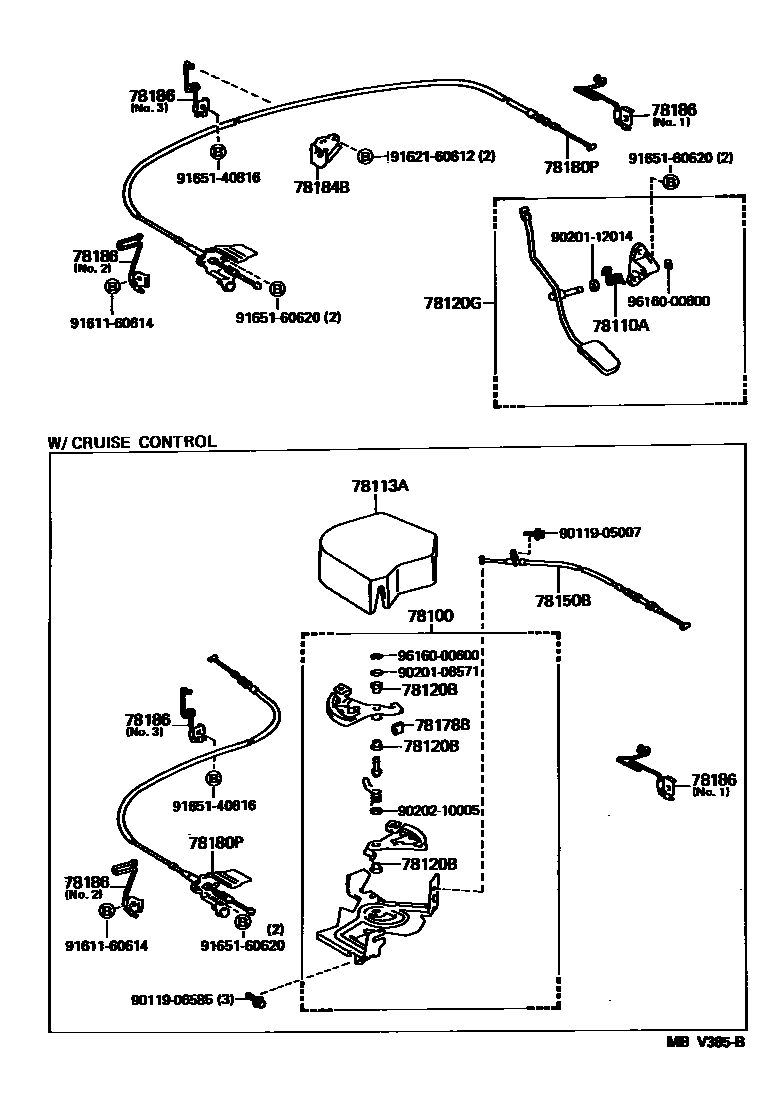

Parts diagram
78100LINK ASSY, ACCELERATOR
main78100-16020i199104-199508
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
main90508-17003i199104-199508
78113ACOVER, AUTO DRIVE ACCELERATOR LINK
main78113-16020i199104-199508
78120BBUSH (FOR ACCELERATOR LINK ROD)
main90386-08005i199104-199208
UPR; W(CRUISE CONTROL),UPR
main90386-08077×2i199208-199508
LOWER; W(CRUISE CONTROL),LOWER
78120GROD ASSY, ACCELERATOR PEDAL
main78120-16100i199104-199508
78150BCABLE ASSY, ACCELERATOR AUTO DRIVE
main78150-16020i199104-199508
W(CRUISE CONTROL)
main78150-16030i199104-199508
W(CRUISE CONTROL)
main78150-16060i199409-199508
CALIFORNIA SPEC & W(CRUISE CONTROL)
78178BDAMPER, ACCEL CONTROL NO.4 ROD BRACKET
main78178-14010×2i199104-199508
78180PCABLE ASSY, ACCELERATOR CONTROL
main78180-16270i199104-199508
main78180-16300i199104-199409
CALIFORNIA SPEC
main78180-16340i199104-199208
W(CRUISE CONTROL)
main78180-16480i199409-199508
CALIFORNIA SPEC & W(CRUISE CONTROL)
main78180-16500i199409-199508
CALIFORNIA SPEC
78184BBRACKET, ACCELERATOR CONTROL CABLE
main78184-10080i199104-199508
main78184-16070i199409-199508
CALIFORNIA SPEC
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
main78186-16110i199104-199508
NO.2
main78186-16120i199104-199508
NO.1
main78186-16150i199104-199508
NO.3
main78186-16180i199409-199508
CALIFORNIA SPEC,NO.1
main78186-16190i199409-199508
CALIFORNIA SPEC,NO.2
9011905007
main90119-05007
9011906585
main90119-06585
9020108571
main90201-08571
9020112014
main90201-12014
9020210005
main90202-10005
9161160614
main91611-60614
9162160612
main91621-60612
9165140816
main91651-40816
9165160620
main91651-60620
9616000600
main96160-00600

20 parts on this diagram · 2 diagrams in section

ACCELERATOR LINK for Toyota PASEO

This section contains 23 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota PASEO. Key components include: LINK ASSY, ACCELERATOR, SPRING (FOR ACCELERATOR PEDAL ROD), COVER, AUTO DRIVE ACCELERATOR LINK, BUSH (FOR ACCELERATOR LINK ROD), ROD ASSY, ACCELERATOR PEDAL.
