Toyota PASEO — WINDSHIELD WIPER

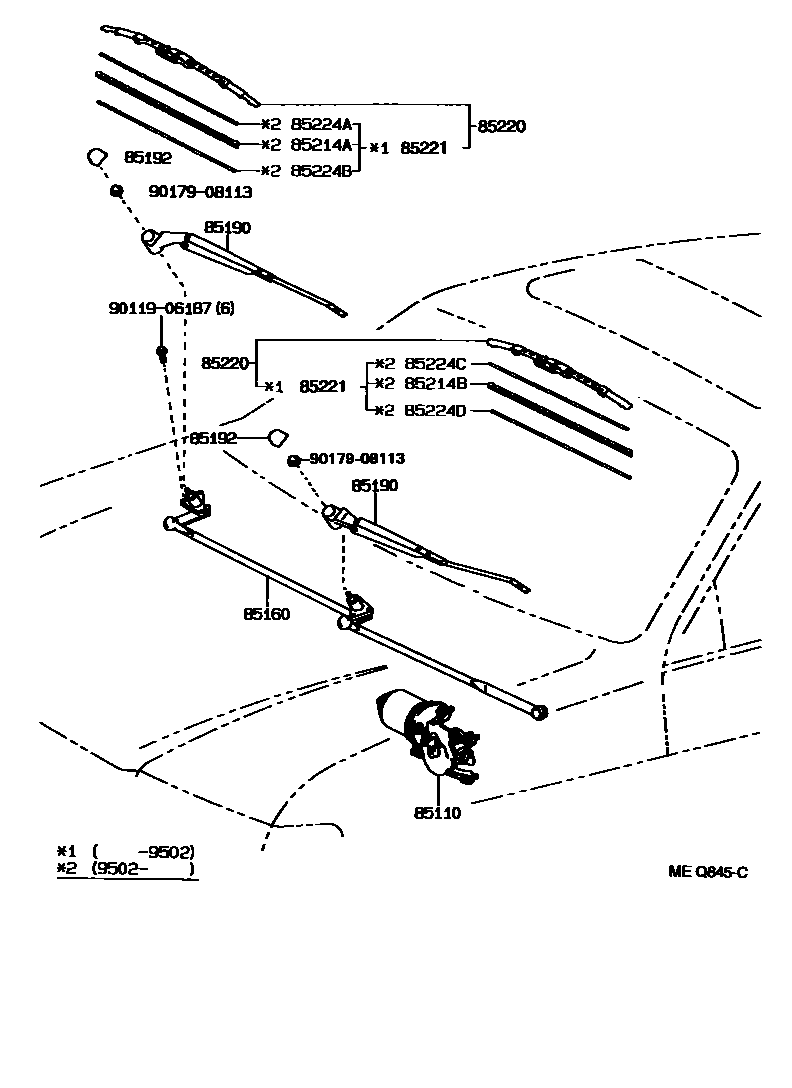

Parts diagram

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-16480i199104-199208

main85110-16561i199208-199210

main85110-16562i199210-199508

85160LINK ASSY, WINDSHIELD WIPER

main85150-16430i199104-199208

main85150-16431i199208-199508

85190ARM ASSY, WINDSHIELD WIPER

main85211-16090i199104-199111

RH

main85211-16091i199111-199508

RH

main85221-16150i199104-199111

LH

main85221-16151i199111-199508

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-12800×2i199104-199111

main85292-12020×2i199111-199508

85214ARUBBER, WIPER, RH

main85214-33060i199502-199508

85214BRUBBER, WIPER, LH

main85214-20320i199502-199508

85220BLADE ASSY, WINDSHIELD WIPER

main85212-16080i199104-199111

RH

main85212-16081i199111-199212

RH

main85212-16082i199212-199508

RH

main85222-12692i199212-199508

LH

main85222-1G020i199104-199111

LH

main85222-1G021i199111-199212

LH

85221BLADE, WINDSHIELD WIPER

main85213-20310i199212-199502

RH

main85213-32080i199104-199202

RH

main85213-32240i199202-199212

RH

main85223-1G010i199104-199109

LH

main85223-1G040i199109-199212

LH

main85223-30400i199212-199502

LH

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-33050i199502-199508

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-33050i199502-199508

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-30430i199502-199508

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-30420i199502-199508

9011906187

main90119-06187

9017908113

main90179-08113

14 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota PASEO

This section contains 14 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota PASEO. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, ARM ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, RUBBER, WIPER, RH.
