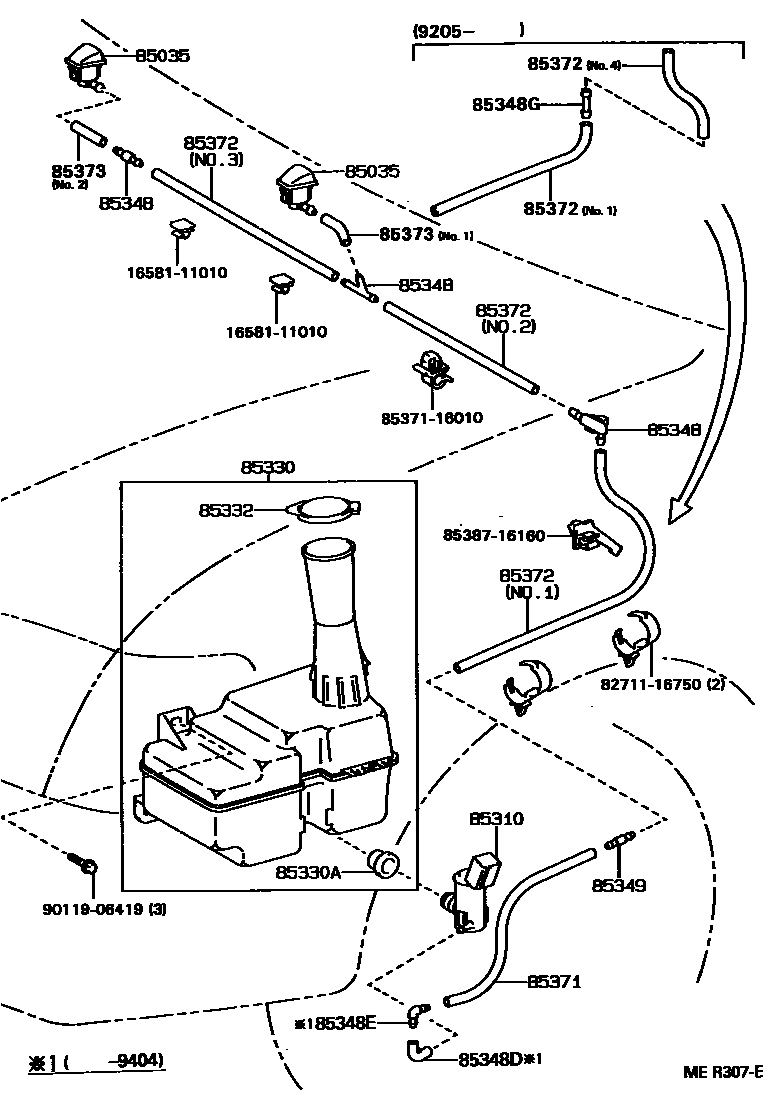

Toyota PASEO — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-16040×2i199104-199508

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20170i199104-199205

W(INTERMITTENT RR WIPER)

main85310-20210i199104-199508

main85330-12280i199205-199208

W(INTERMITTENT RR WIPER)

85330JAR ASSY, WINDSHIELD WASHER

main85315-16070i199104-199508

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i199104-199508

85332CAP, WINDSHIELD WASHER JAR

main85316-10190i199104-199309

main85316-16070i199309-199508

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-14390i199104-199508

3 WAY

main85375-10260i199104-199508

2 WAY

main85375-16160i199104-199508

L JOINT

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481i199104-199404

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200i199104-199404

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85376-50040i199205-199508

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i199104-199508

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i199404-199508

L=1450

main90099-33299i199104-199208

L=1000

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i199205-199508

L=1450,NO.4

main90446-06013i199104-199508

L=1000,NO.3,NO.2

main90446-07001i199205-199508

L=1800,NO.1

main90446-07012i199104-199205

L=1800(*H,L=900),NO.1

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080i199104-199508

L=1450,NO.1

main90099-33299i199104-199508

L=1000,NO.2

1658111010CLAMP, HOSE(FOR WATER HOSE)

main16581-11010

8271116750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16750

8537116010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-16010

8538716160CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-16160

9011906419

main90119-06419

18 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota PASEO

This section contains 18 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota PASEO. Key components include: NOZZLE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
