Toyota PASEO — SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE ROOM 0003 1INSTRUMENT PANEL,DOOR SWITCH 0004 1INSTRUMENT PANEL,DOOR SWITCH 0005 1IGNITION,TURN SIGNAL SWITCH 0006 1IGNITION,TURN SIGNAL SWITCH 0007 1INSTRUMENT PANEL RELAY & SWIT0008 1INSTRUMENT PANEL RELAY & SWIT0009 1DOOR,FLOOR,LUGGAGE

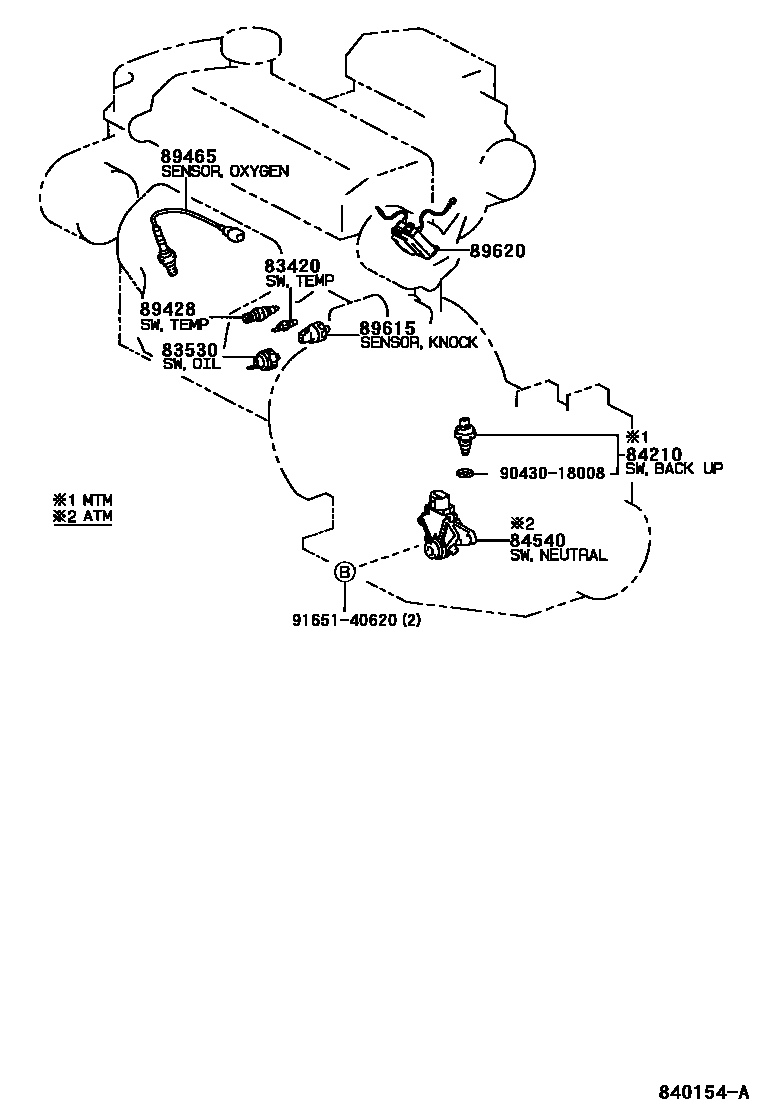

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iEL54..EUR199512-199705

main83420-20040iEL54..ARL,GEN199508-199705

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iEL54199803

main83530-30090iEL54199508-199803

sub83530-60020

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iEL54..MTM199508

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-16050iEL54..ATM199508

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-12160iEL54199508

89465SENSOR, OXYGEN

main89465-16050iEL54..ARL,GEN199508-199608

main89465-16080iEL54..EUR199512

main89465-16110iEL54..ARL,GEN199608

89615SENSOR, KNOCK CONTROL

main89615-22030iEL54..ARL,GEN199508-199608

MATSUSHITA

main89615-22040iEL54..ARL,GEN199508-199608

NIPPONDENSO

89620IGNITER ASSY

main89620-12440iEL54..EUR199512-199701

main89620-16260iEL54..CVT199712-199802

main89621-16040iEL54..ARL,GEN199508-199608

main89621-16050iEL54..ARL,GEN199608

9043018008

main90430-18008

9165140620

main91651-40620

10 parts on this diagram · 9 diagrams in section
