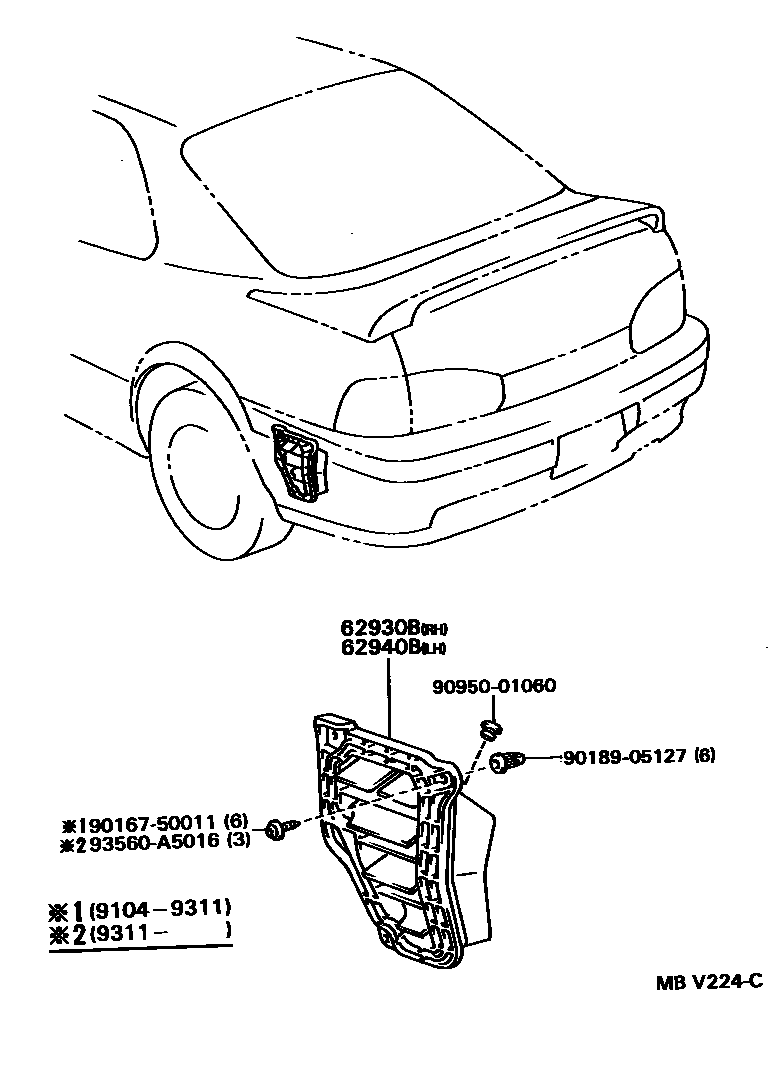

Toyota PASEO — ROOF SIDE VENTILATOR

62930BDUCT ASSY, QUARTER VENT, RH

main62930-16030i199104-199206

62940BDUCT ASSY, QUARTER VENT, LH

main62940-16040i199104-199508

9016750011

main90167-50011

9018905127

main90189-05127

9095001060

main90950-01060

93560A5016

main93560-A5016

6 parts on this diagram · 1 diagram in section

ROOF SIDE VENTILATOR for Toyota PASEO

This section contains 6 genuine Toyota parts for the ROOF SIDE VENTILATOR system of the Toyota PASEO. Key components include: DUCT ASSY, QUARTER VENT, RH, DUCT ASSY, QUARTER VENT, LH.
