Toyota PASEO — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-16030-03i199104-199208

GRAY,TRIM2#

main87810-16030-S3i199208-199508

LI.GRAY,TRIM2#

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20110-03i199104-199208

SHADOW GRAY,TRIM2#

main87834-20110-S3i199208-199508

LI.GRAY,TRIM2#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-16670i199104-199508

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-16720i199104-199508

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-16670i199308-199409

main87910-16671i199409-199508

main87910-16680i199104-199308

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-16720i199104-199308

REMOTE CONTROL MIRROR

main87940-16721i199409-199508

main87940-16730i199104-199308

9015350011

main90153-50011

9015450005

main90154-50005

8 parts on this diagram · 1 diagram in section

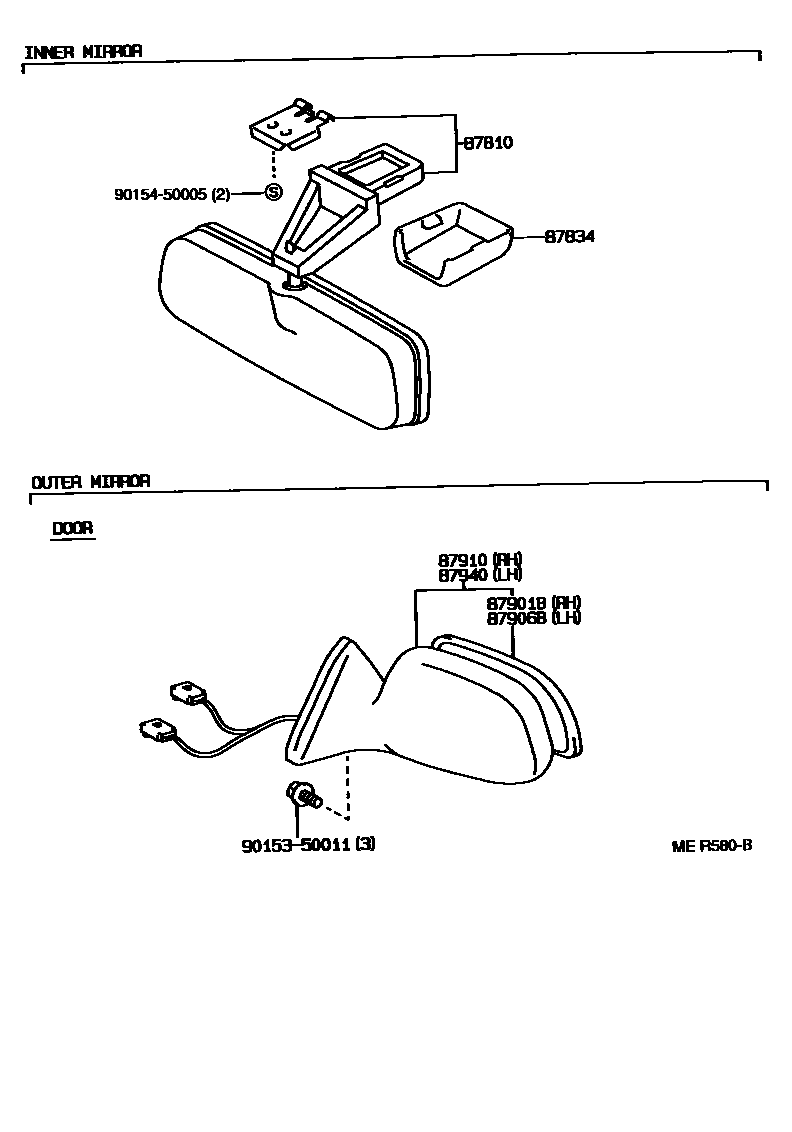

MIRROR for Toyota PASEO

This section contains 8 genuine Toyota parts for the MIRROR system of the Toyota PASEO. Key components include: MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR ASSY, OUTER REAR VIEW, RH.
